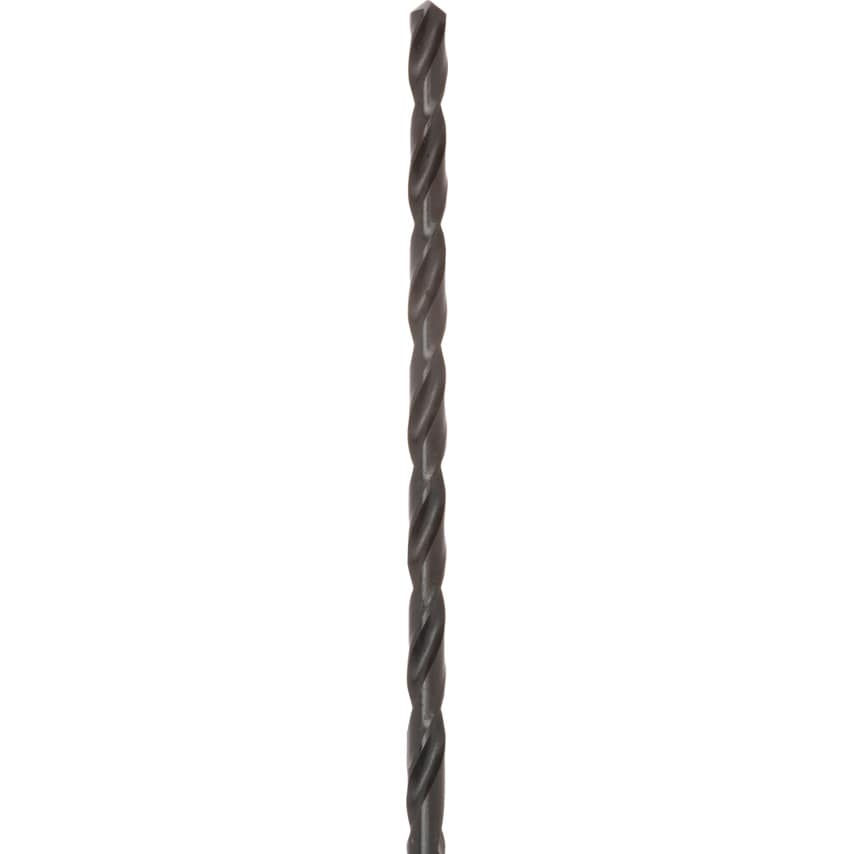

Series L100 HSS straight shank long series drills are excellent general purpose drills which are designed to drill steels with tensile strength up to 1,000N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite.
Features and Benefits
Manufactured from HSS for improved toughness
Black oxide coating for greater heat and wear resistance
Ideal for general purpose drilling
Typical Applications
Drilling
Steels
Grey cast iron
Malleable cast iron
Nickel brass
Graphite
Standards
Manufactured to BS 328; Part 1: 1986, DIN 340 RN, ISO 494.
| Flute Length | 73mm |
| Drill Diameter | 3.5mm |
| Finish/Coating | Steam Tempered |
| Drill Length Type | Long Series |
| Drill Diameter Tolerance | H8 |
| Point Angle | 118\u00b0 |
| Series | L100 |
| Number of Flutes | 1 |
| Number of Pieces | 1 |
| Shank Diameter Tolerance | F11 |
| Point Type | Split Point |
| Standards Met | BS 328 | DIN 340 | ISO 494 |
| Material | HSS |
| Drill Diameter Metric | 3.5 |
| Coolant Delivery | External |
| Cutting Direction | Right Hand |
| Flute Type | Spiral |
| Shank Type | Straight |
| Helix Type | Normal Helix |
| Flute Construction | Ground flutes |
| Overall Length | 112mm |
| Web Thickness | Standard |
| Helix Angle | 30\u00b0 |
| System of Measurement | Metric |
