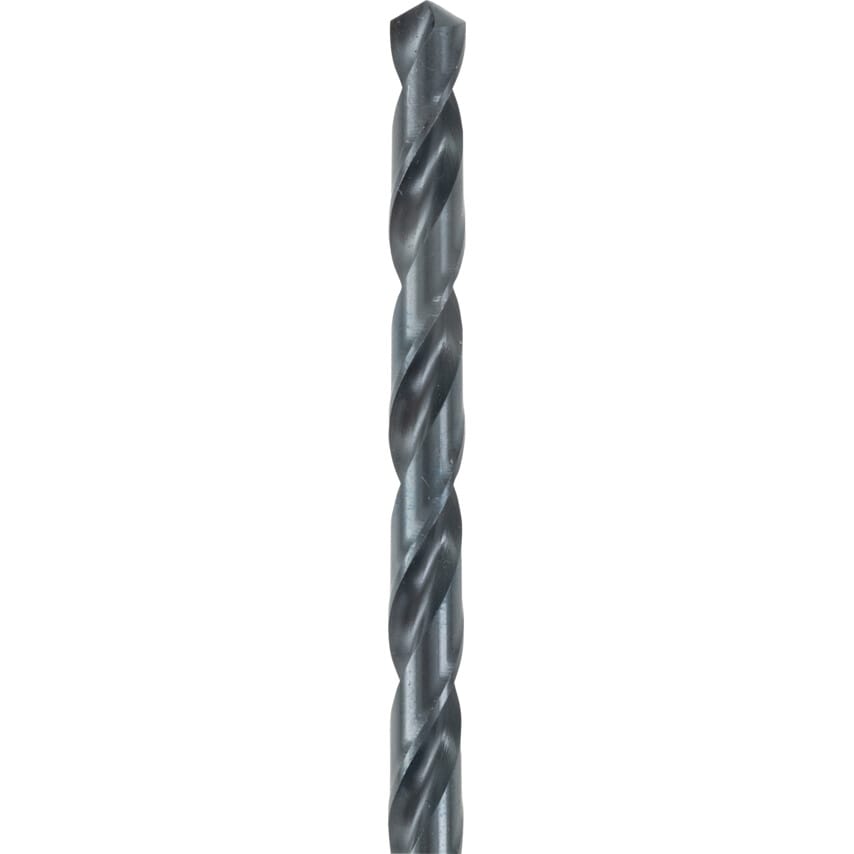

Series L100 HSS straight shank long series drills are excellent general purpose drills which are designed to drill steels with tensile strength up to 1,000N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite.
Features and Benefits
Manufactured from HSS for improved toughness
Black oxide coating for greater heat and wear resistance
Ideal for general purpose drilling
Typical Applications
Drilling
Steels
Grey cast iron
Malleable cast iron
Nickel brass
Graphite
Standards
Manufactured to BS 328; Part 1: 1986, DIN 340 RN, ISO 494.
| Number of Flutes | 1 |
| Number of Pieces | 1 |
| Flute Length | 97mm |
| Overall Length | 148mm |
| Material | HSS |
| Product Type | Drills |
| Point Angle | 118\u00b0 |
| Series | L100 |
| Shank Diameter Tolerance | F11 |
| Flute Construction | Ground flutes |
| Drill Diameter Metric | 6.2 |
| Drill Length Type | Long Series |
| Helix Type | Normal Helix |
| Point Type | Split Point |
| Finish/Coating | Steam Tempered |
| System of Measurement | Metric |
| Shank Type | Straight |
| Helix Angle | 30\u00b0 |
| Drill Diameter | 6.2mm |
| Coolant Delivery | External |
| Web Thickness | Standard |
| Standards Met | BS 328 | DIN 340 | ISO 494 |
| Flute Type | Spiral |
| Drill Diameter Tolerance | H8 |
| Cutting Direction | Right Hand |
