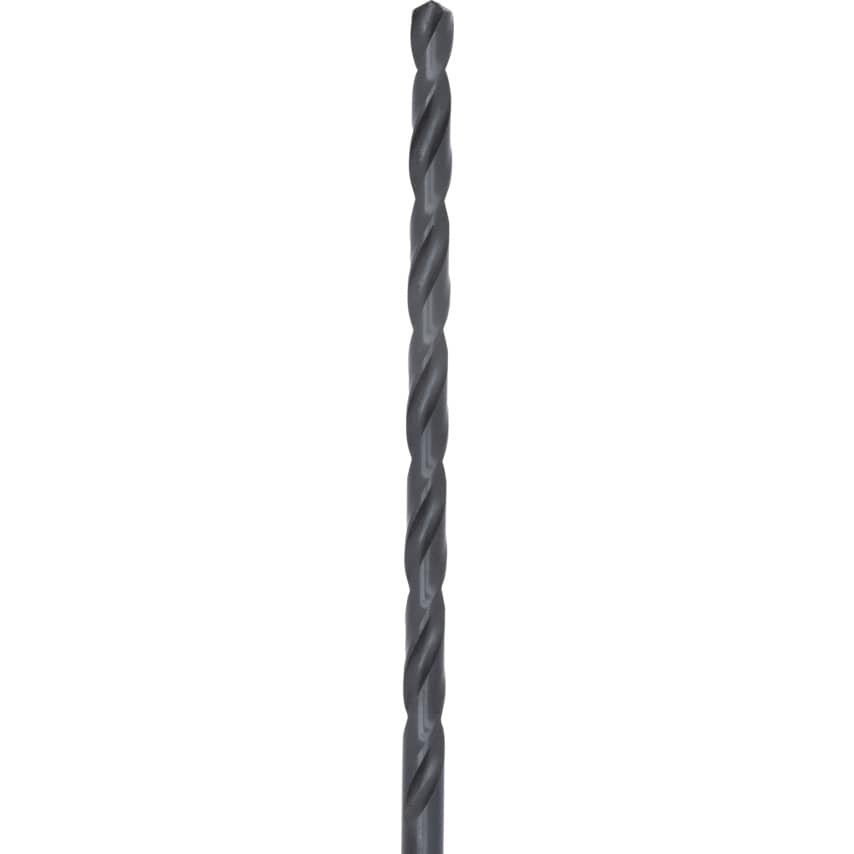

Series L100 HSS straight shank long series drills are excellent general purpose drills which are designed to drill steels with tensile strength up to 1,000N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite.
Features and Benefits
Manufactured from HSS for improved toughness
Black oxide coating for greater heat and wear resistance
Ideal for general purpose drilling
Typical Applications
Drilling
Steels
Grey cast iron
Malleable cast iron
Nickel brass
Graphite
Standards
Manufactured to BS 328; Part 1: 1986, DIN 340 RN, ISO 494.
| Number of Pieces | 1 |
| Flute Construction | Ground flutes |
| Flute Type | Spiral |
| Shank Diameter Tolerance | F11 |
| System of Measurement | Metric |
| Finish/Coating | Steam Tempered |
| Helix Angle | 30\u00b0 |
| Standards Met | BS 328 | DIN 340 | ISO 494 |
| Overall Length | 119mm |
| Shank Type | Straight |
| Series | L100 |
| Flute Length | 78mm |
| Coolant Delivery | External |
| Drill Diameter | 4.2mm |
| Point Angle | 118\u00b0 |
| Drill Diameter Metric | 4.2 |
| Web Thickness | Standard |
| Drill Length Type | Long Series |
| Cutting Direction | Right Hand |
| Helix Type | Normal Helix |
| Material | HSS |
| Number of Flutes | 1 |
| Drill Diameter Tolerance | H8 |
| Point Type | Split Point |
