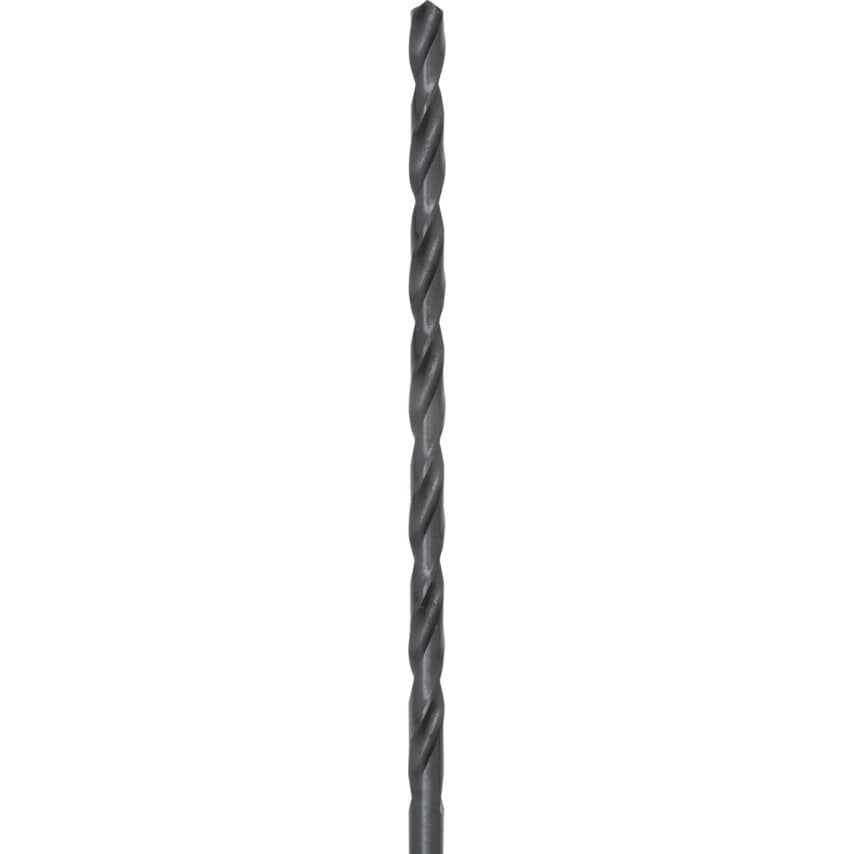

Series L100 HSS straight shank long series drills are excellent general purpose drills which are designed to drill steels with tensile strength up to 1,000N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite.
Features and Benefits
Manufactured from HSS for improved toughness
Black oxide coating for greater heat and wear resistance
Ideal for general purpose drilling
Typical Applications
Drilling
Steels
Grey cast iron
Malleable cast iron
Nickel brass
Graphite
Standards
Manufactured to BS 328; Part 1: 1986, DIN 340 RN, ISO 494.
| Cutting Direction | Right Hand |
| Drill Diameter Metric | 3 |
| Drill Diameter | 3mm |
| Flute Length | 66mm |
| Helix Angle | 30\u00b0 |
| Shank Type | Straight |
| Point Angle | 118\u00b0 |
| Coolant Delivery | External |
| Helix Type | Normal Helix |
| Web Thickness | Standard |
| Overall Length | 100mm |
| Point Type | Split Point |
| Shank Diameter Tolerance | F11 |
| Number of Flutes | 1 |
| Number of Pieces | 1 |
| Standards Met | BS 328 | DIN 340 | ISO 494 |
| Material | HSS |
| Series | L100 |
| Drill Length Type | Long Series |
| Drill Diameter Tolerance | H8 |
| Flute Type | Spiral |
| Flute Construction | Ground flutes |
| System of Measurement | Metric |
| Finish/Coating | Steam Tempered |
