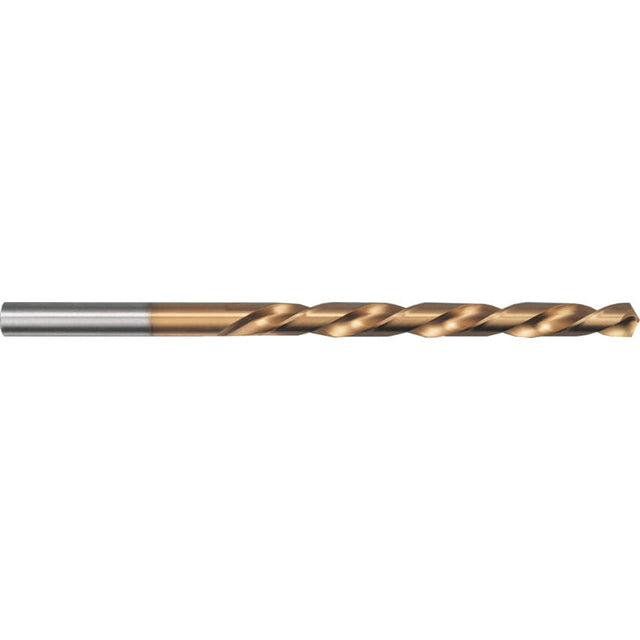

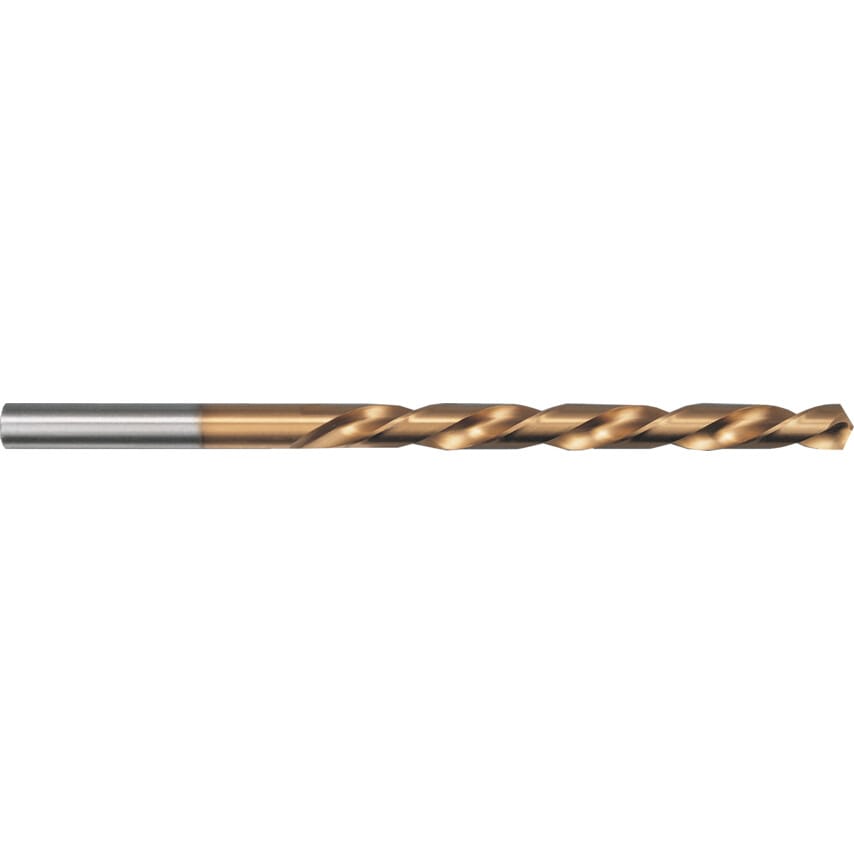

Series 667 HSS Straight Shank Long SeriesDrills
TiN Coated - Metric
For the drilling of deeper holes and for use with drill bushings. For machining alloyed and unalloyed steel, cast steel, cast iron, German silver and graphite. Type N. Manufactured to DIN 340.
| Point Angle | 118\u00b0 |
| MFR Part No. | 00667 001.000 |
| Standards Met | DIN 340 |
| Product Type | Drills |
| Drill Length Type | Long Series |
| Shank Type | Straight |
| Overall Length | 56mm |
| Finish/Coating | TiN |
| Point Type | Standard |
| Number of Pieces | 1 |
| Drill Diameter Tolerance | H8 |
| Helix Type | Normal Helix |
| Shank Diameter Tolerance | H8 |
| Drill Diameter | 1mm |
| System of Measurement | Metric |
| Coolant Delivery | External |
| Flute Construction | Ground flutes |
| Flute Type | Spiral |
| Series | 667 |
| Web Thickness | Form A |
| Drill Diameter Metric | 1 |
| Material | HSS |
| Flute Length | 33mm |
| Cutting Direction | Right Hand |
