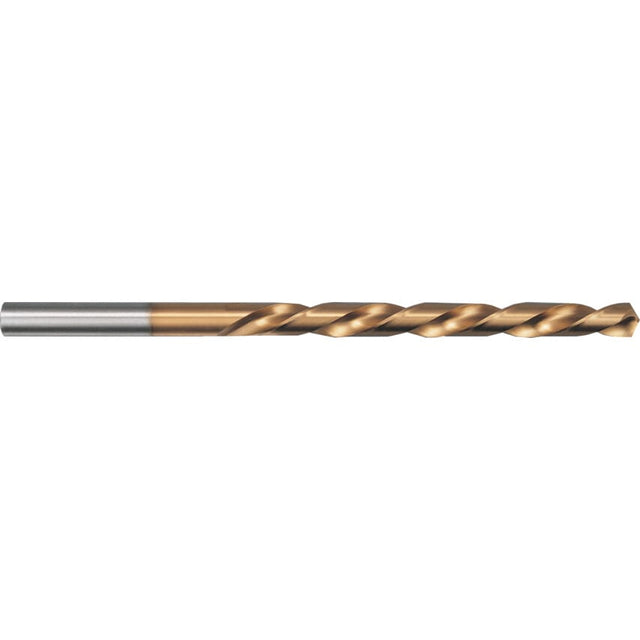

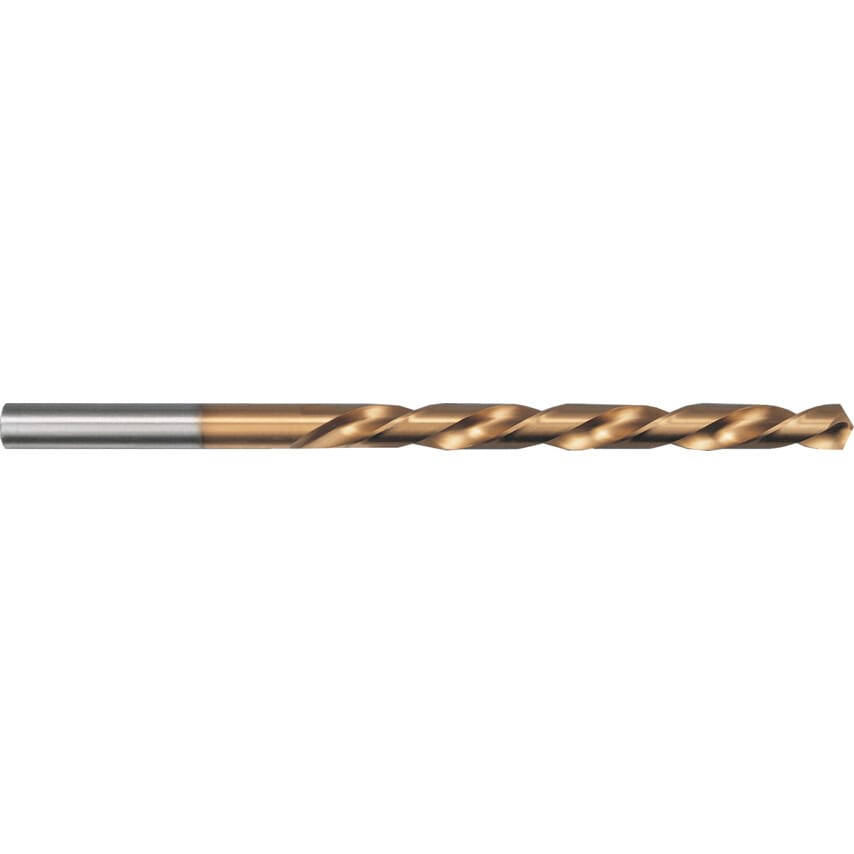

Series 667 HSS Straight Shank Long SeriesDrills
TiN Coated - Metric
For the drilling of deeper holes and for use with drill bushings. For machining alloyed and unalloyed steel, cast steel, cast iron, German silver and graphite. Type N. Manufactured to DIN 340.
| Shank Diameter Tolerance | F11 |
| Drill Diameter | 3mm |
| Finish/Coating | TiN |
| Point Angle | 118\u00b0 |
| Series | 667 |
| System of Measurement | Metric |
| Overall Length | 100mm |
| Helix Type | Normal Helix |
| Standards Met | DIN 340 |
| Flute Type | Spiral |
| Drill Diameter Tolerance | H8 |
| Point Type | Standard |
| Number of Flutes | 2 |
| Flute Construction | Ground flutes |
| Drill Length Type | Long Series |
| MFR Part No. | 00667 003.000 |
| Drill Diameter Metric | 3 |
| Cutting Direction | Right Hand |
| Material | HSS |
| Product Type | Drills |
| Coolant Delivery | External |
| Shank Type | Straight |
| Flute Length | 66mm |
| Number of Pieces | 1 |
| Web Thickness | Form A |
