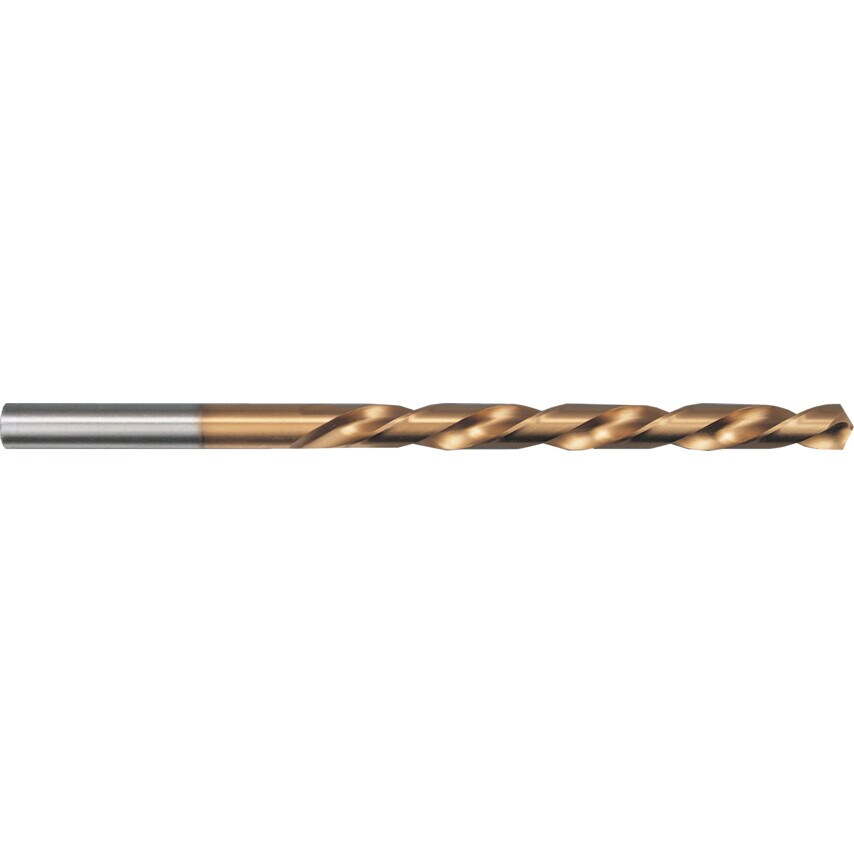

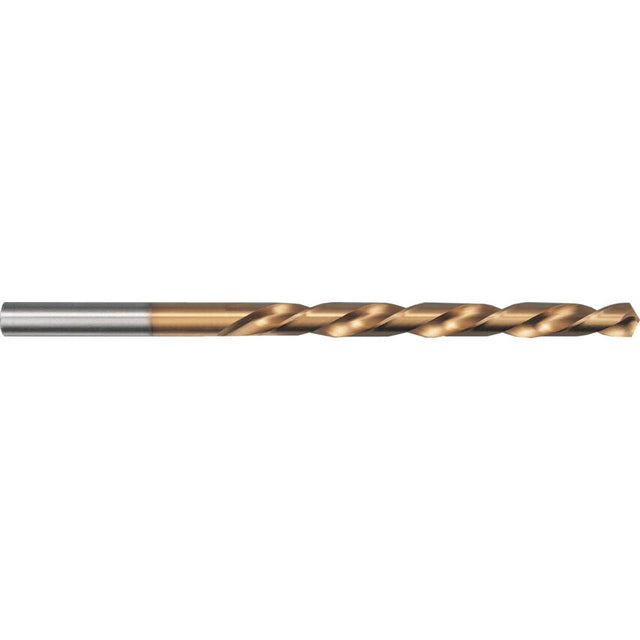

Series 667 HSS Straight Shank Long SeriesDrills
TiN Coated - Metric
For the drilling of deeper holes and for use with drill bushings. For machining alloyed and unalloyed steel, cast steel, cast iron, German silver and graphite. Type N. Manufactured to DIN 340.
| Web Thickness | Form A |
| Flute Type | Spiral |
| Flute Construction | Ground flutes |
| Point Angle | 118\u00b0 |
| Finish/Coating | TiN |
| Material | HSS |
| Drill Diameter Tolerance | H8 |
| Overall Length | 195mm |
| Standards Met | DIN 340 |
| Coolant Delivery | External |
| Helix Type | Normal Helix |
| Point Type | Standard |
| Flute Length | 128mm |
| Shank Type | Straight |
| Drill Length Type | Long Series |
| Drill Diameter | 10.80mm |
| Shank Diameter Tolerance | H8 |
| Number of Pieces | 1 |
| MFR Part No. | 00667 010.800 |
| Series | 667 |
| System of Measurement | Metric |
| Cutting Direction | Right Hand |
