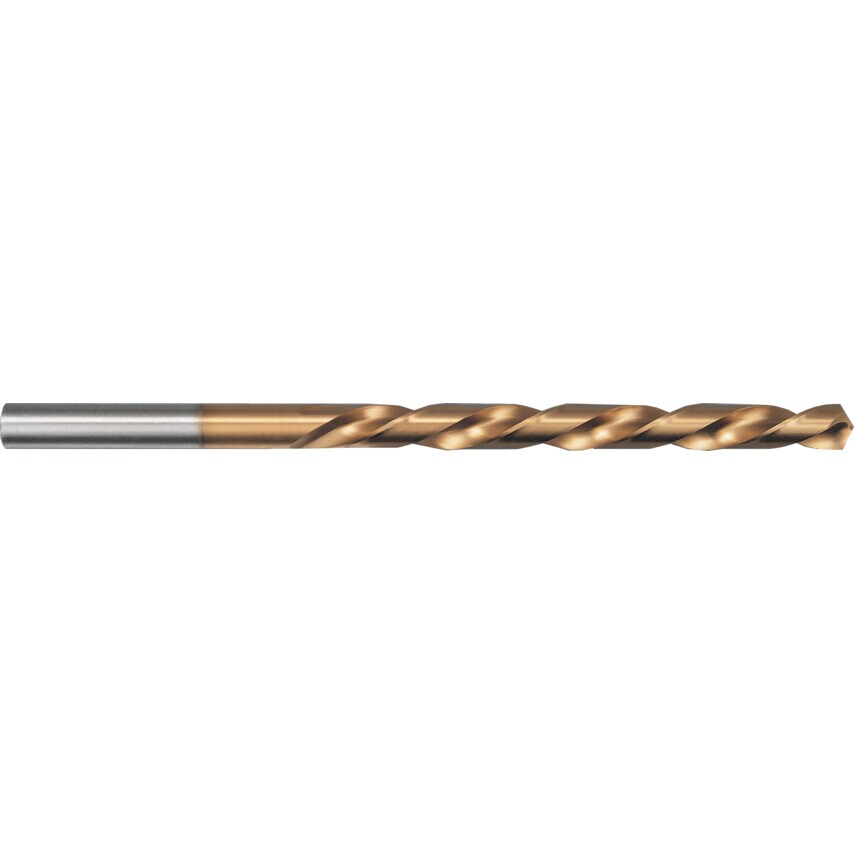

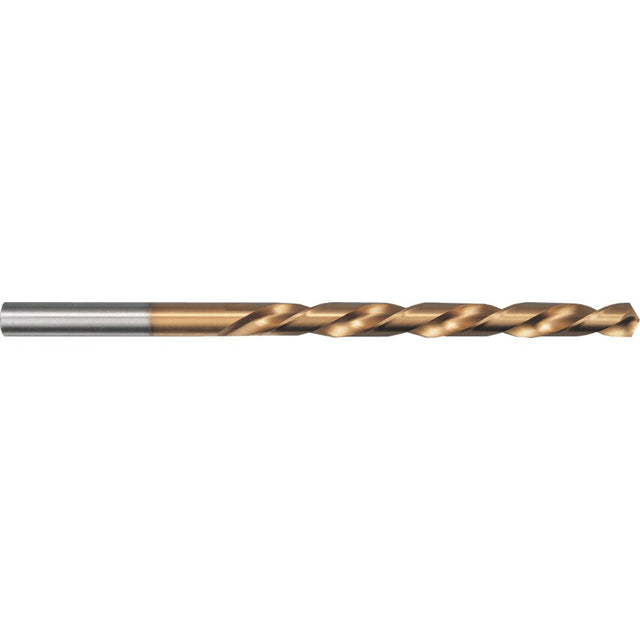

Series 667 HSS Straight Shank Long SeriesDrills
TiN Coated - Metric
For the drilling of deeper holes and for use with drill bushings. For machining alloyed and unalloyed steel, cast steel, cast iron, German silver and graphite. Type N. Manufactured to DIN 340.
| Point Angle | 118\u00b0 |
| Number of Pieces | 1 |
| Number of Flutes | 2 |
| Shank Type | Straight |
| Flute Type | Spiral |
| System of Measurement | Metric |
| Overall Length | 156mm |
| Shank Diameter Tolerance | F11 |
| Finish/Coating | TiN |
| Drill Length Type | Long Series |
| Point Type | Standard |
| Series | 667 |
| Flute Construction | Ground flutes |
| Product Type | Drills |
| Flute Length | 102mm |
| Drill Diameter Tolerance | H8 |
| Helix Type | Normal Helix |
| Material | HSS |
| Web Thickness | Form A |
| Cutting Direction | Right Hand |
| Coolant Delivery | External |
| Standards Met | DIN 340 |
| Drill Diameter | 7mm |
| Drill Diameter Metric | 7 |
| MFR Part No. | 00667 007.000 |
