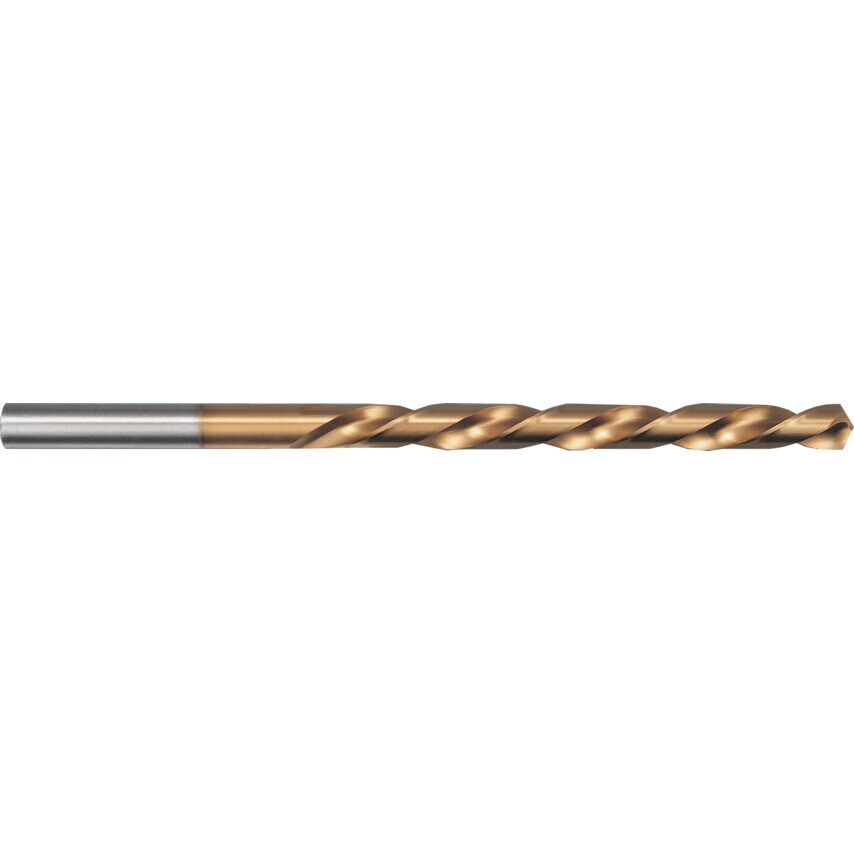

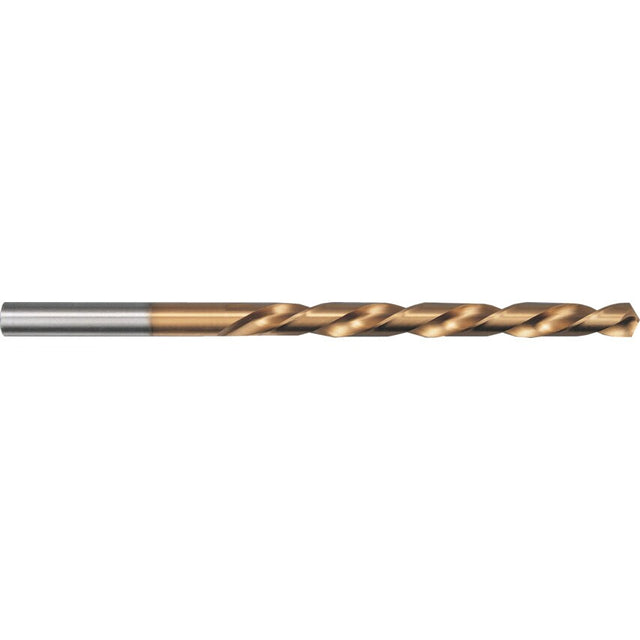

Series 667 HSS Straight Shank Long SeriesDrills
TiN Coated - Metric
For the drilling of deeper holes and for use with drill bushings. For machining alloyed and unalloyed steel, cast steel, cast iron, German silver and graphite. Type N. Manufactured to DIN 340.
| Point Type | Standard |
| MFR Part No. | 00667 015.000 |
| Drill Diameter Tolerance | H8 |
| Standards Met | DIN 340 |
| Shank Diameter Tolerance | H8 |
| Web Thickness | Form A |
| Drill Diameter | 15.00mm |
| System of Measurement | Metric |
| Series | 667 |
| Number of Pieces | 1 |
| Flute Construction | Ground flutes |
| Product Type | Drills |
| Material | HSS |
| Point Angle | 118\u00b0 |
| Finish/Coating | TiN |
| Cutting Direction | Right Hand |
| Helix Type | Normal Helix |
| Flute Type | Spiral |
| Drill Length Type | Long Series |
| Flute Length | 144mm |
| Overall Length | 220mm |
| Coolant Delivery | External |
| Size | 15.0mm |
