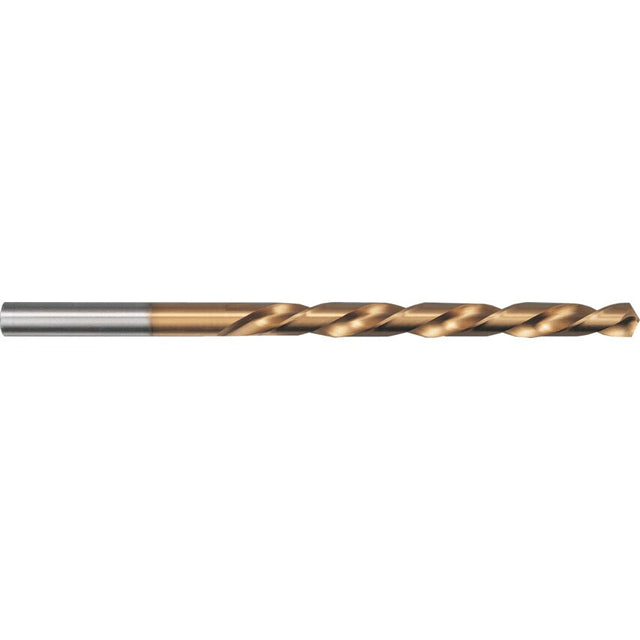

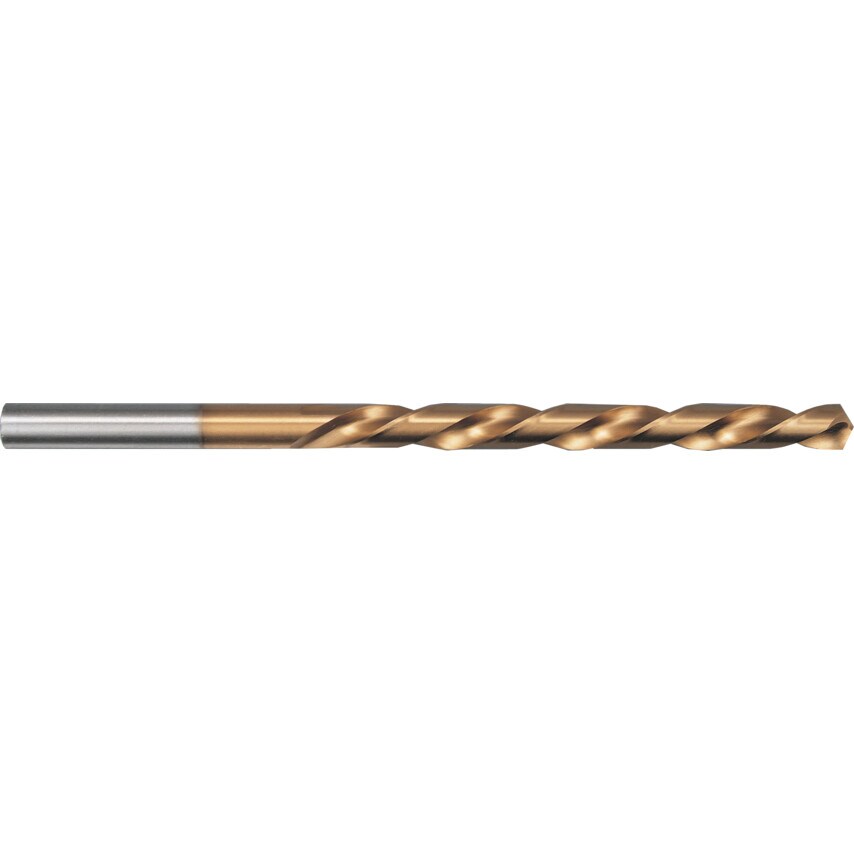

Series 667 HSS Straight Shank Long SeriesDrills
TiN Coated - Metric
For the drilling of deeper holes and for use with drill bushings. For machining alloyed and unalloyed steel, cast steel, cast iron, German silver and graphite. Type N. Manufactured to DIN 340.
| Product Type | Drills |
| Standards Met | DIN 340 |
| Flute Length | 78mm |
| Drill Length Type | Long Series |
| Material | HSS |
| Series | 667 |
| Number of Pieces | 1 |
| Drill Diameter | 3.80mm |
| Flute Type | Spiral |
| Shank Diameter Tolerance | H8 |
| MFR Part No. | 00667 003.800 |
| Coolant Delivery | External |
| Point Angle | 118\u00b0 |
| Size | 3.8mm |
| Overall Length | 119mm |
| Helix Type | Normal Helix |
| Finish/Coating | TiN |
| Web Thickness | Form A |
| Point Type | Thinned Point |
| System of Measurement | Metric |
| Cutting Direction | Right Hand |
| Drill Diameter Tolerance | H8 |
| Flute Construction | Ground flutes |
