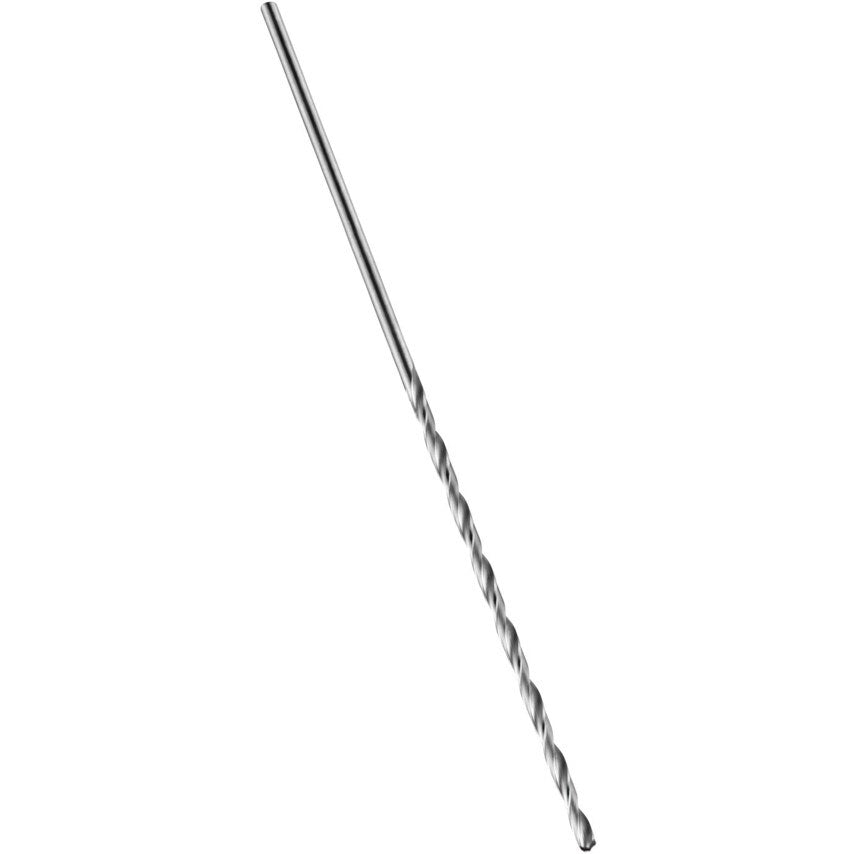

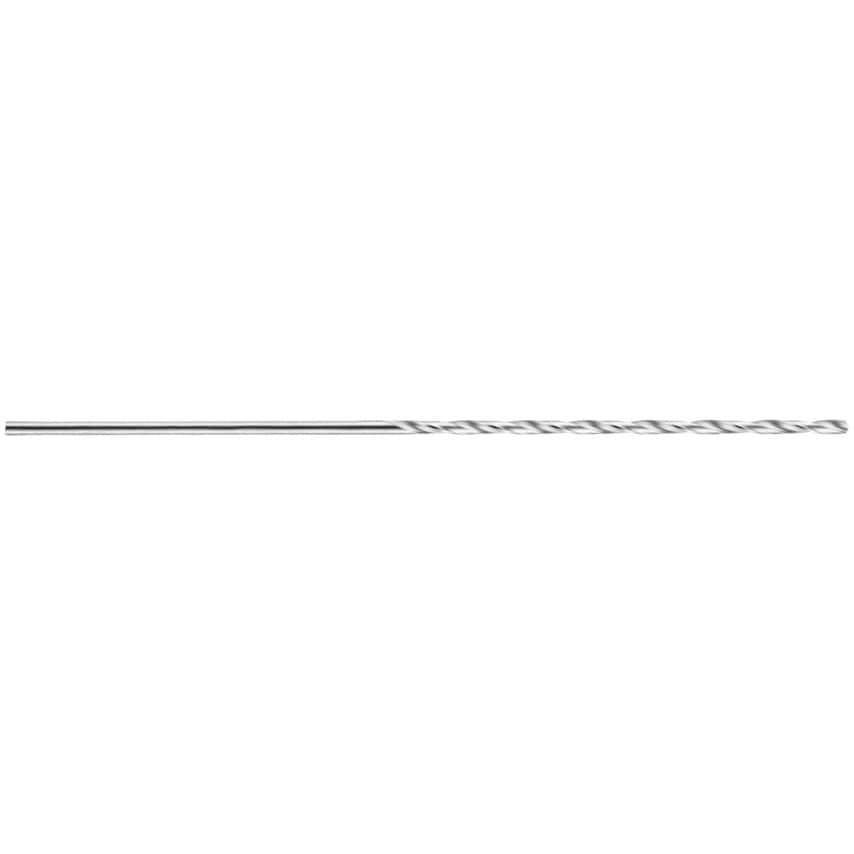

Series A110 HSS Straight Shank Long Series Drills - Metric
General-purpose high speed steel long series drills for drilling holes up to 6 x diameter. Point angle: 118.
Size Range: 0.5 - 22.0mm
Manufactured to DIN 340.
| Material | HSS |
| Standards Met | DIN 340 |
| Product Type | Jobber Drills |
| Web Thickness | Standard |
| Point Angle | 118\u00b0 |
| Flute Construction | Ground flutes |
| Number of Flutes | 2 |
| Helix Type | Normal Helix |
| Coolant Delivery | External |
| Flute Type | Spiral |
| Drill Diameter | 4mm |
| System of Measurement | Metric |
| Finish/Coating | Steam Tempered |
| Drill Diameter Metric | 4 |
| Flute Length | 78mm |
| Number of Pieces | 1 |
| Drill Length Type | Long Series |
| Series | A110 |
| Drill Diameter Tolerance | H8 |
| Overall Length | 119mm |
| MFR Part No. | A1104.0 |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
