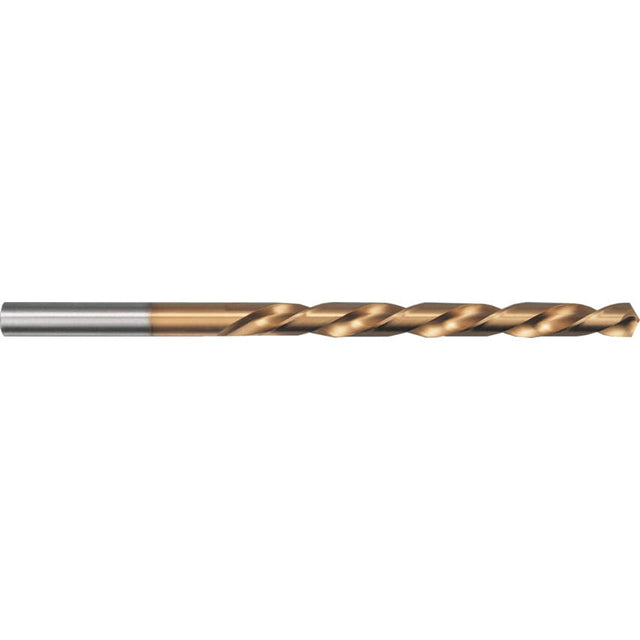

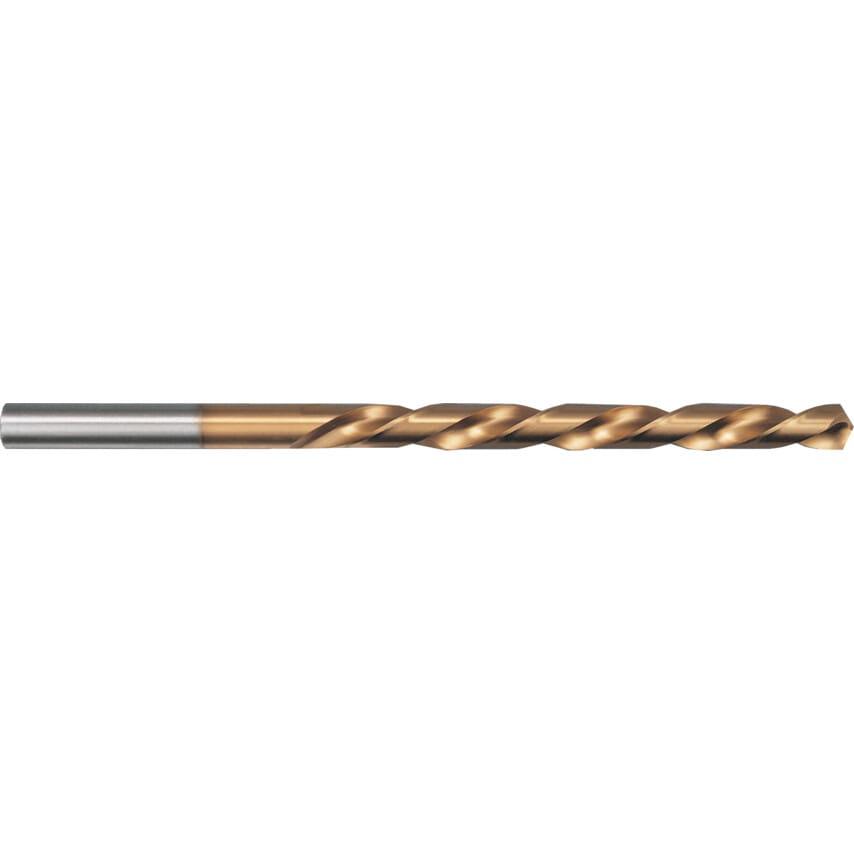

Series 667 HSS Straight Shank Long SeriesDrills
TiN Coated - Inch
For the drilling of deeper holes and for use with drill bushings. For machining alloyed and unalloyed steel, cast steel, cast iron, German silver and graphite. Type N. Manufactured to DIN340.
For all dimensional specifications please refer to our catalogue.
| Flute Type | Spiral |
| Overall Length | 184mm |
| Flute Length | 121mm |
| Material | HSS |
| MFR Part No. | 00667 010.320 |
| System of Measurement | Inch |
| Number of Pieces | 1 |
| Point Angle | 118\u00b0 |
| Drill Diameter Tolerance | H8 |
| Finish/Coating | TiN |
| Helix Type | Normal Helix |
| Cutting Direction | Right Hand |
| Standards Met | DIN 340 |
| Number of Flutes | 2 |
| Coolant Delivery | External |
| Web Thickness | Form A |
| Flute Construction | Ground flutes |
| Point Type | Standard |
| Series | 667 |
