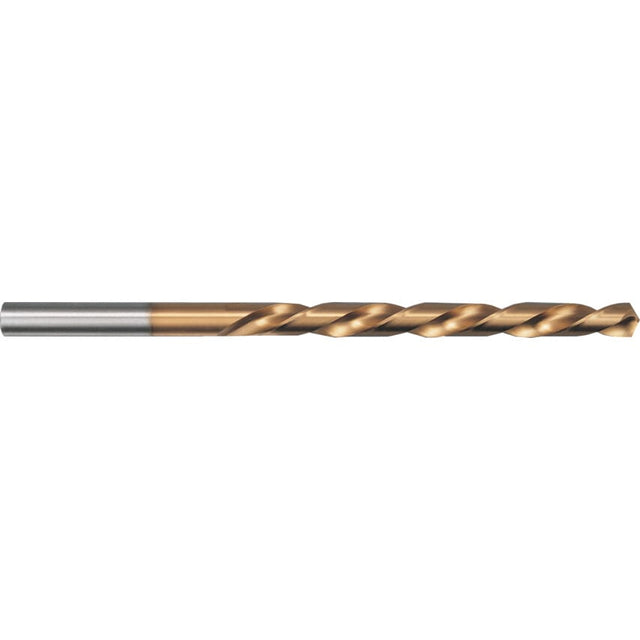

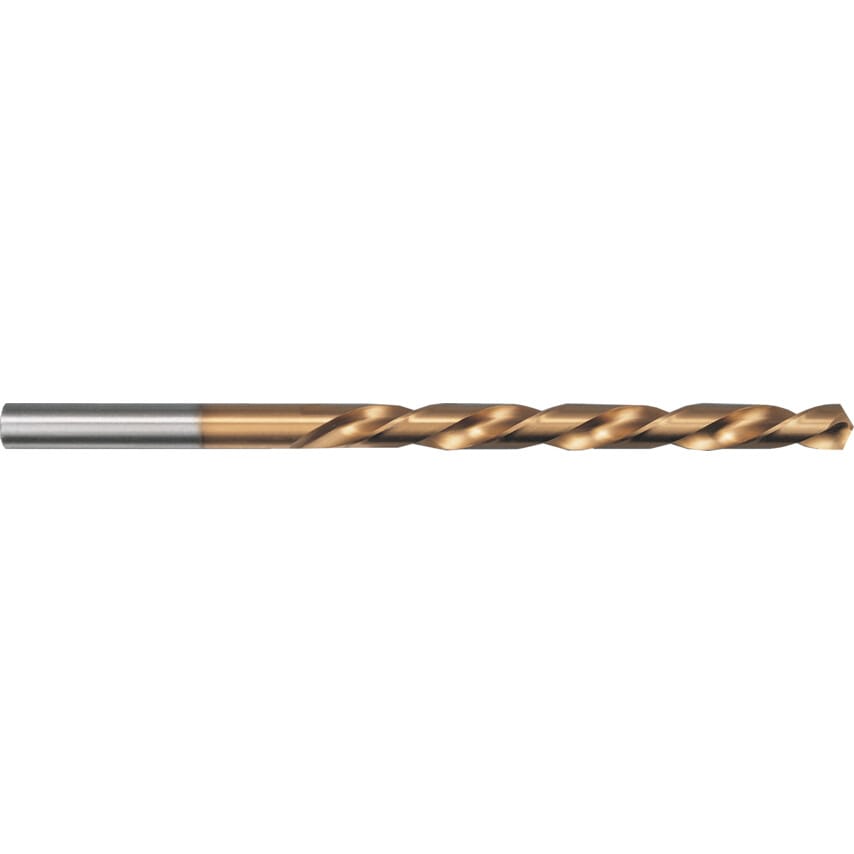

Series 667 HSS Straight Shank Long SeriesDrills
TiN Coated - Metric
For the drilling of deeper holes and for use with drill bushings. For machining alloyed and unalloyed steel, cast steel, cast iron, German silver and graphite. Type N. Manufactured to DIN 340.
| Flute Type | Spiral |
| Flute Length | 158mm |
| Series | 667 |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Material | HSS |
| Finish/Coating | TiN |
| Coolant Delivery | External |
| Standards Met | DIN 340 |
| Flute Construction | Ground flutes |
| Drill Diameter Tolerance | H8 |
| Helix Type | Normal Helix |
| System of Measurement | Metric |
| Web Thickness | Form A |
| Overall Length | 241mm |
| Point Angle | 118\u00b0 |
| Number of Pieces | 1 |
