£1.45
Loading...

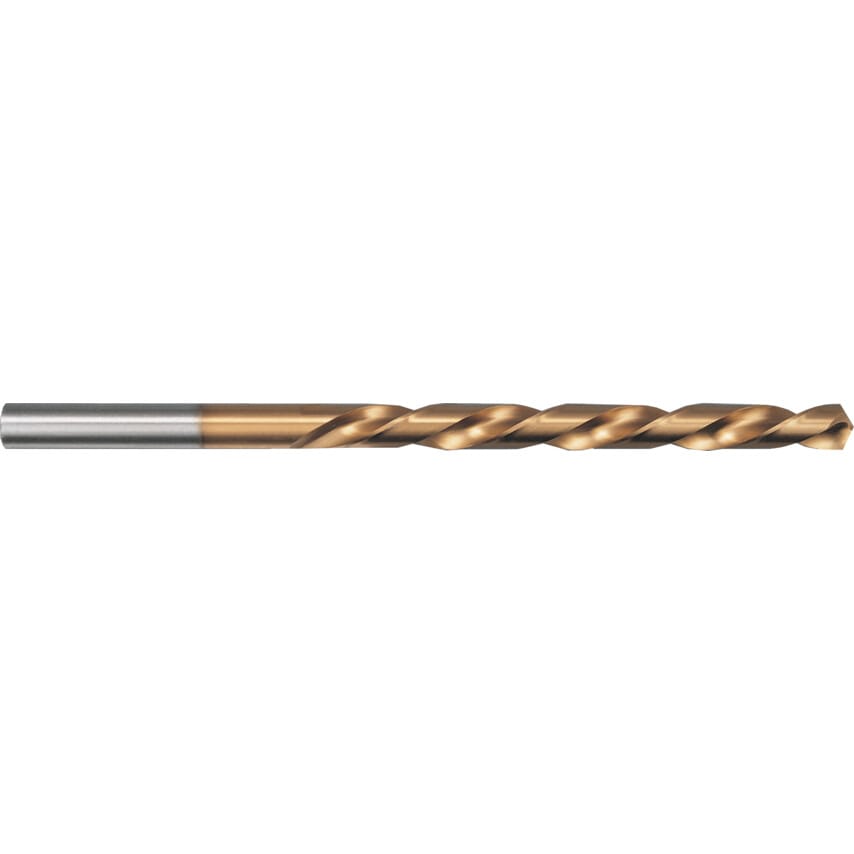

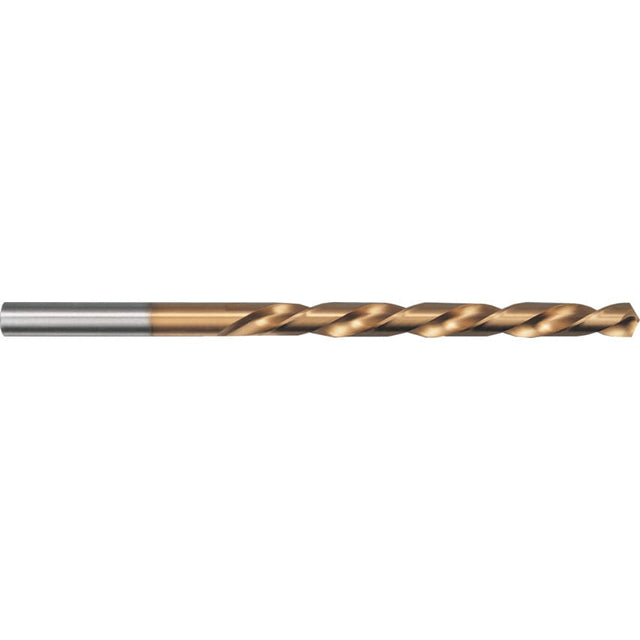

Series 667 HSS Straight Shank Long SeriesDrills
TiN Coated - Metric
For the drilling of deeper holes and for use with drill bushings. For machining alloyed and unalloyed steel, cast steel, cast iron, German silver and graphite. Type N. Manufactured to DIN 340.
| Cutting Direction | Right Hand |
| Drill Diameter Tolerance | H8 |
| Flute Type | Spiral |
| Helix Type | Normal Helix |
| Point Type | Standard |
| Web Thickness | Form A |
| Coolant Delivery | External |
| Finish/Coating | TiN |
| Number of Pieces | 1 |
| Flute Length | 115mm |
| Point Angle | 118\u00b0 |
| System of Measurement | Metric |
| Flute Construction | Ground flutes |
| Overall Length | 175mm |
| Material | HSS |
| Series | 667 |
| Standards Met | DIN 340 |
