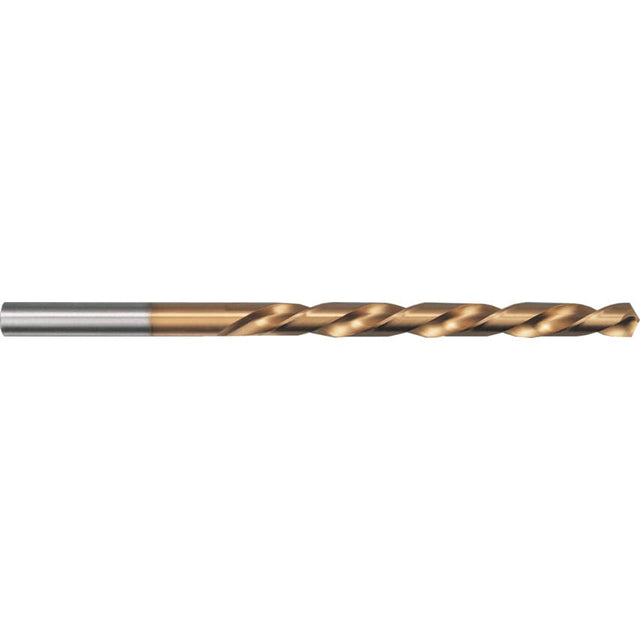

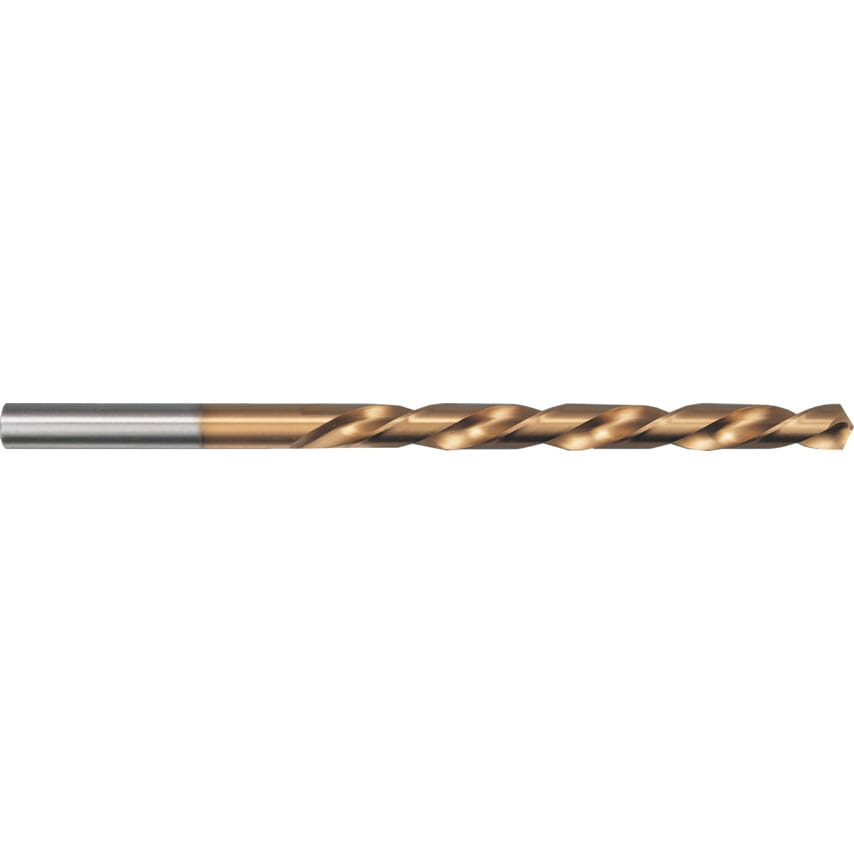

Series 667 HSS Straight Shank Long SeriesDrills
TiN Coated - Inch
For the drilling of deeper holes and for use with drill bushings. For machining alloyed and unalloyed steel, cast steel, cast iron, German silver and graphite. Type N. Manufactured to DIN340.
For all dimensional specifications please refer to our catalogue.
| Cutting Direction | Right Hand |
| Series | 667 |
| Drill Length Type | Long Series |
| Finish/Coating | TiN |
| Helix Type | Normal Helix |
| Flute Type | Spiral |
| Flute Length | 115mm |
| Drill Diameter Tolerance | H8 |
| Number of Pieces | 1 |
| Number of Flutes | 2 |
| Drill Diameter | 11/32in |
| Coolant Delivery | External |
| Overall Length | 175mm |
| Flute Construction | Ground flutes |
| Point Type | Standard |
| Standards Met | DIN 340 |
| Web Thickness | Form A |
| Shank Type | Straight |
| MFR Part No. | 00667 008.730 |
| Material | HSS |
| Point Angle | 118\u00b0 |
| System of Measurement | Inch |
