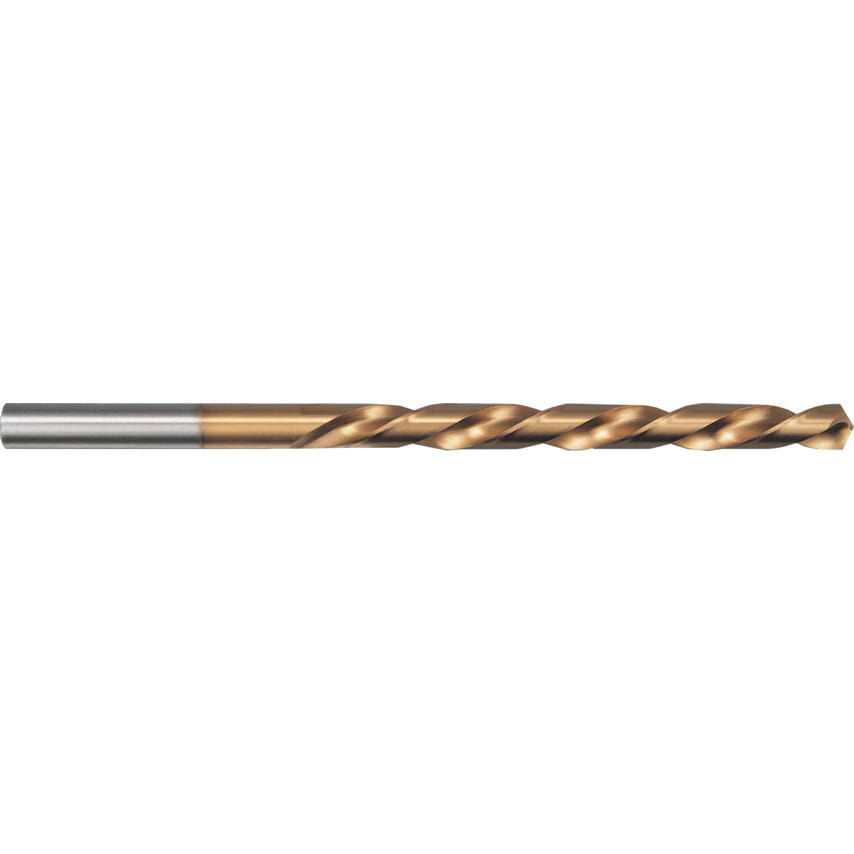

Series 667 HSS Straight Shank Long SeriesDrills
TiN Coated - Inch
For the drilling of deeper holes and for use with drill bushings. For machining alloyed and unalloyed steel, cast steel, cast iron, German silver and graphite. Type N. Manufactured to DIN340.
For all dimensional specifications please refer to our catalogue.
| Number of Pieces | 1 |
| Series | 667 |
| Finish/Coating | TiN |
| Overall Length | 184mm |
| Point Type | Standard |
| System of Measurement | Inch |
| Number of Flutes | 2 |
| Flute Construction | Ground flutes |
| Material | HSS |
| Cutting Direction | Right Hand |
| MFR Part No. | 00667 009.520 |
| Flute Type | Spiral |
| Standards Met | DIN 340 |
| Helix Type | Normal Helix |
| Coolant Delivery | External |
| Flute Length | 121mm |
| Point Angle | 118\u00b0 |
| Web Thickness | Form A |
| Drill Diameter Tolerance | H8 |
