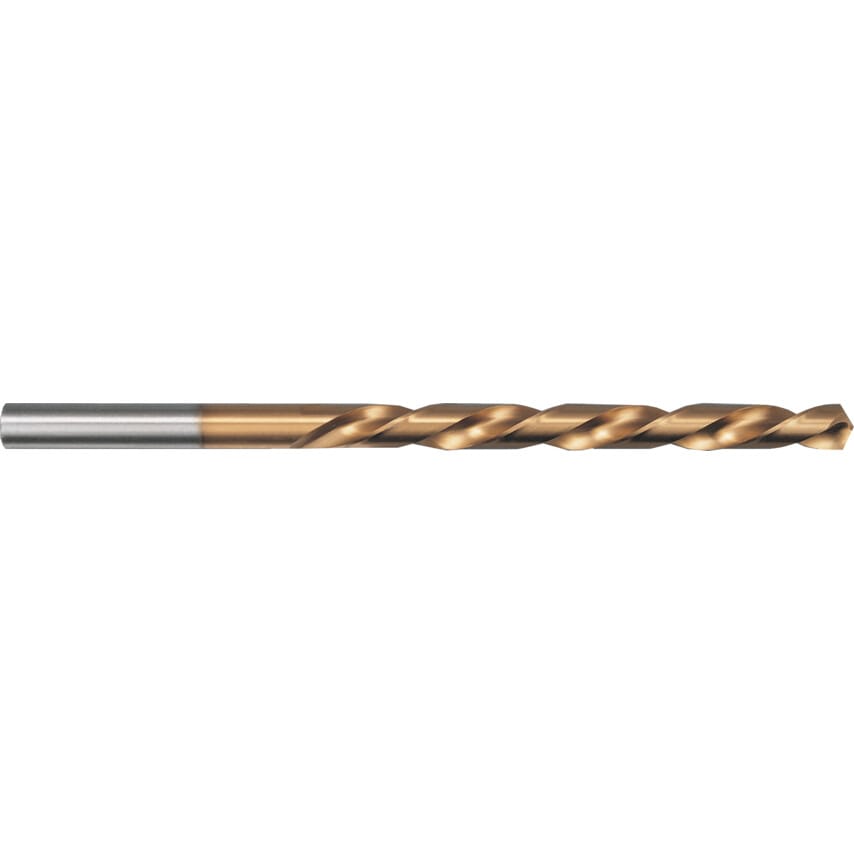

Series 667 HSS Straight Shank Long SeriesDrills
TiN Coated - Inch
For the drilling of deeper holes and for use with drill bushings. For machining alloyed and unalloyed steel, cast steel, cast iron, German silver and graphite. Type N. Manufactured to DIN340.
For all dimensional specifications please refer to our catalogue.
| Finish/Coating | TiN |
| MFR Part No. | 00667 012.700 |
| Point Type | Standard |
| Flute Type | Spiral |
| Material | HSS |
| Drill Diameter Tolerance | H8 |
| Point Angle | 118\u00b0 |
| Web Thickness | Form A |
| Cutting Direction | Right Hand |
| Helix Type | Normal Helix |
| Standards Met | DIN 340 |
| Flute Length | 134mm |
| Coolant Delivery | External |
| Series | 667 |
| Number of Pieces | 1 |
| Flute Construction | Ground flutes |
| Overall Length | 205mm |
| System of Measurement | Inch |
| Number of Flutes | 2 |
