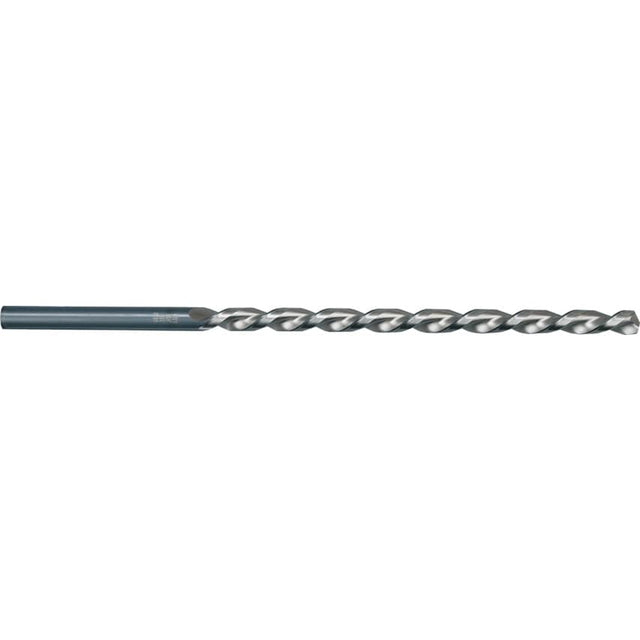

Series 502 HSSHigh Helix (Parabolic Flute) Straight Shank Extra Length Drills
Metric
Robust tool for use in difficult conditions in extremely deep holes when swarf congestion prevents an adequate flow of coolant. For use in steels and cast iron having a tensile strength of up to 1000N/mm2. Manufactured to DIN 1869.
| Series | 502 |
| Number of Pieces | 1 |
| Cutting Direction | Right Hand |
| Coolant Delivery | External |
| MFR Part No. | 00502 012.500 |
| Overall Length | 295mm |
| Shank Diameter Tolerance | F11 |
| Flute Length | 205mm |
| Material | HSS |
| Flute Construction | Ground flutes |
| Number of Flutes | 2 |
| Point Angle | 130\u00b0 |
| Standards Met | DIN 1869 |
| Flute Type | Parabolic |
| Web Thickness | Form A |
| Helix Type | High Helix |
| Point Type | Conventional |
| Finish/Coating | Steam Tempered |
| Drill Diameter Tolerance | H8 |
| System of Measurement | Metric |
