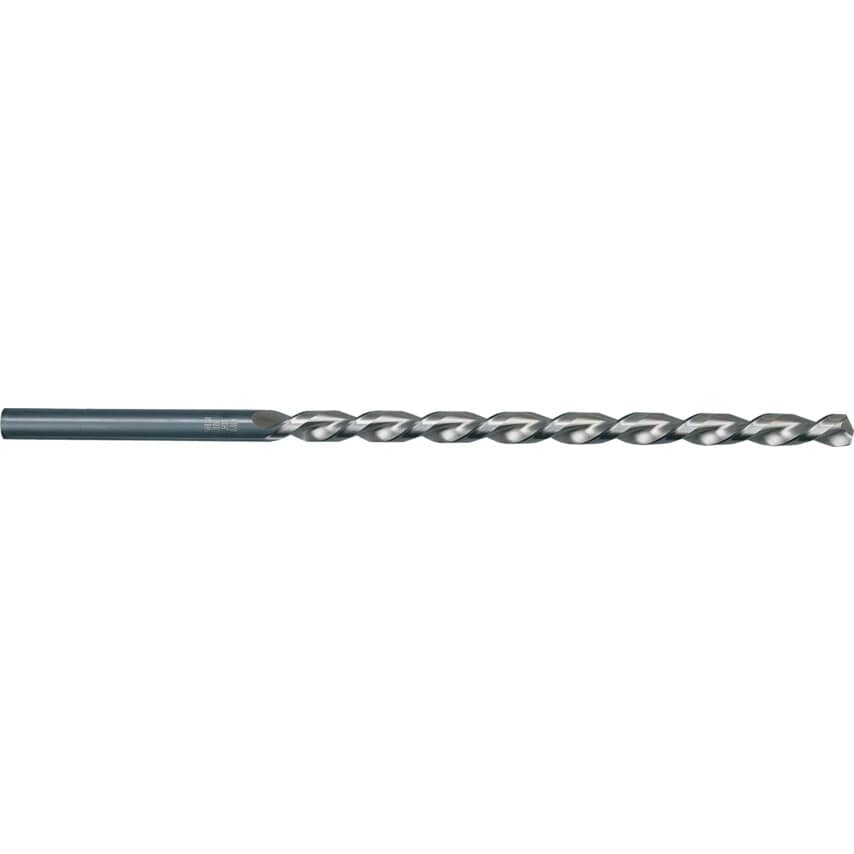

Series 502 HSSHigh Helix (Parabolic Flute) Straight Shank Extra Length Drills
Inch
Robust tool for use in difficult conditions in extremely deep holes when swarf congestion prevents an adequate flow of coolant. For use in steels and cast iron having a tensile strength of up to 1000N/mm2. Manufactured to DIN1869.
| Number of Flutes | 2 |
| Flute Length | 195mm |
| Web Thickness | Form A |
| Overall Length | 280mm |
| Finish/Coating | Nitride |
| Flute Construction | Ground flutes |
| Standards Met | DIN 1869 |
| System of Measurement | Inch |
| Drill Diameter Tolerance | H8 |
| MFR Part No. | 00502 011.110 |
| Point Angle | 130\u00b0 |
| Series | 502 |
| Number of Pieces | 1 |
| Material | HSS |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Coolant Delivery | External |
