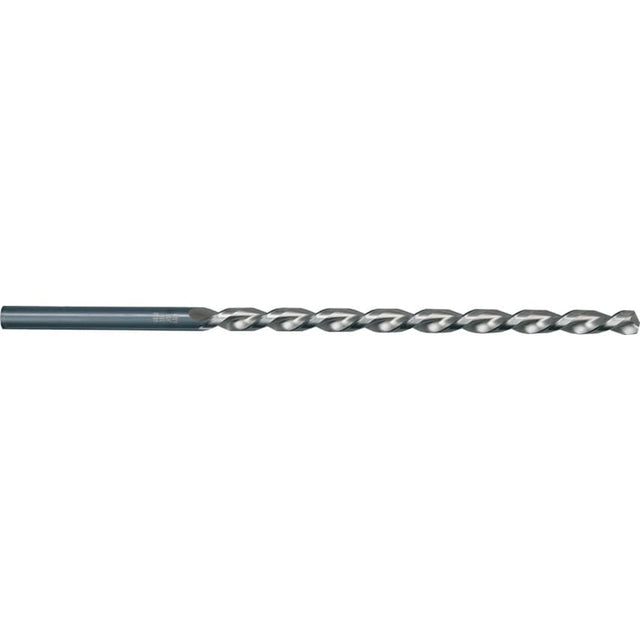

Series 502 HSSHigh Helix (Parabolic Flute) Straight Shank Extra Length Drills
Metric
Robust tool for use in difficult conditions in extremely deep holes when swarf congestion prevents an adequate flow of coolant. For use in steels and cast iron having a tensile strength of up to 1000N/mm2. Manufactured to DIN 1869.
| Number of Pieces | 1 |
| Web Thickness | Form A |
| MFR Part No. | 00502 013.000 |
| Coolant Delivery | External |
| Material | HSS |
| Cutting Direction | Right Hand |
| Drill Diameter Tolerance | H8 |
| Flute Length | 205mm |
| Point Angle | 130\u00b0 |
| Standards Met | DIN 1869 |
| Flute Construction | Ground flutes |
| Point Type | Conventional |
| Shank Diameter Tolerance | F11 |
| Number of Flutes | 2 |
| System of Measurement | Metric |
| Series | 502 |
| Flute Type | Parabolic |
| Overall Length | 295mm |
| Finish/Coating | Steam Tempered |
| Helix Type | High Helix |
