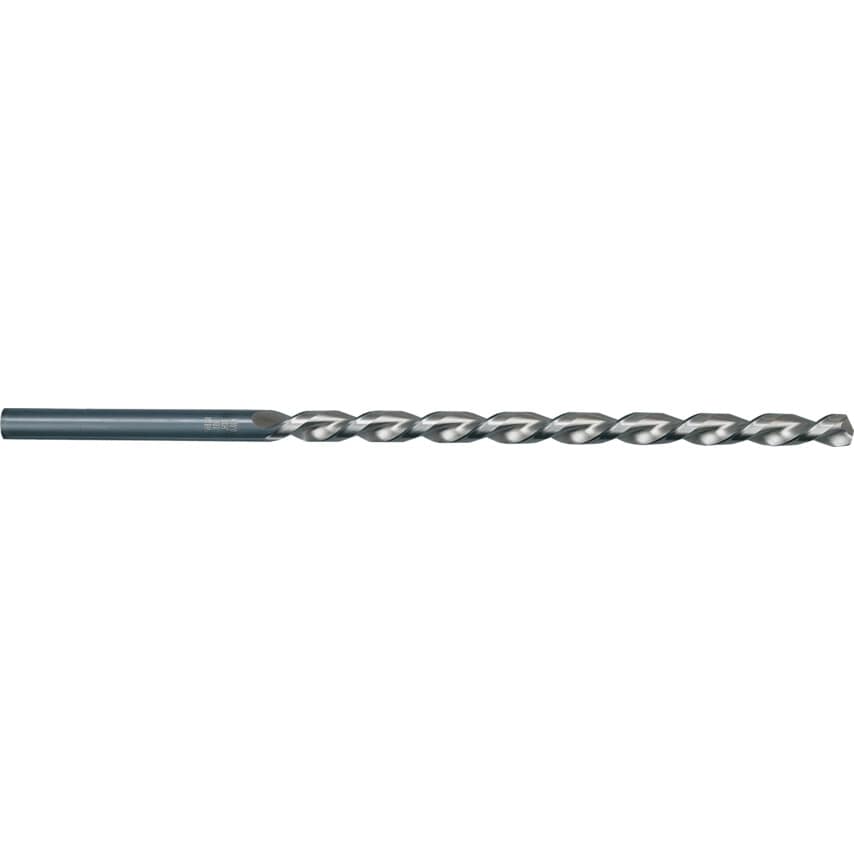

Series 502 HSSHigh Helix (Parabolic Flute) Straight Shank Extra Length Drills
Inch
Robust tool for use in difficult conditions in extremely deep holes when swarf congestion prevents an adequate flow of coolant. For use in steels and cast iron having a tensile strength of up to 1000N/mm2. Manufactured to DIN1869.
| Web Thickness | Form A |
| Material | HSS |
| System of Measurement | Inch |
| Flute Construction | Ground flutes |
| Drill Diameter Tolerance | H8 |
| Overall Length | 240mm |
| Coolant Delivery | External |
| Standards Met | DIN 1869 |
| Finish/Coating | Nitride |
| Cutting Direction | Right Hand |
| Point Angle | 130\u00b0 |
| MFR Part No. | 00502 008.330 |
| Flute Length | 165mm |
| Series | 502 |
| Number of Flutes | 2 |
| Number of Pieces | 1 |
| Flute Type | Parabolic |
