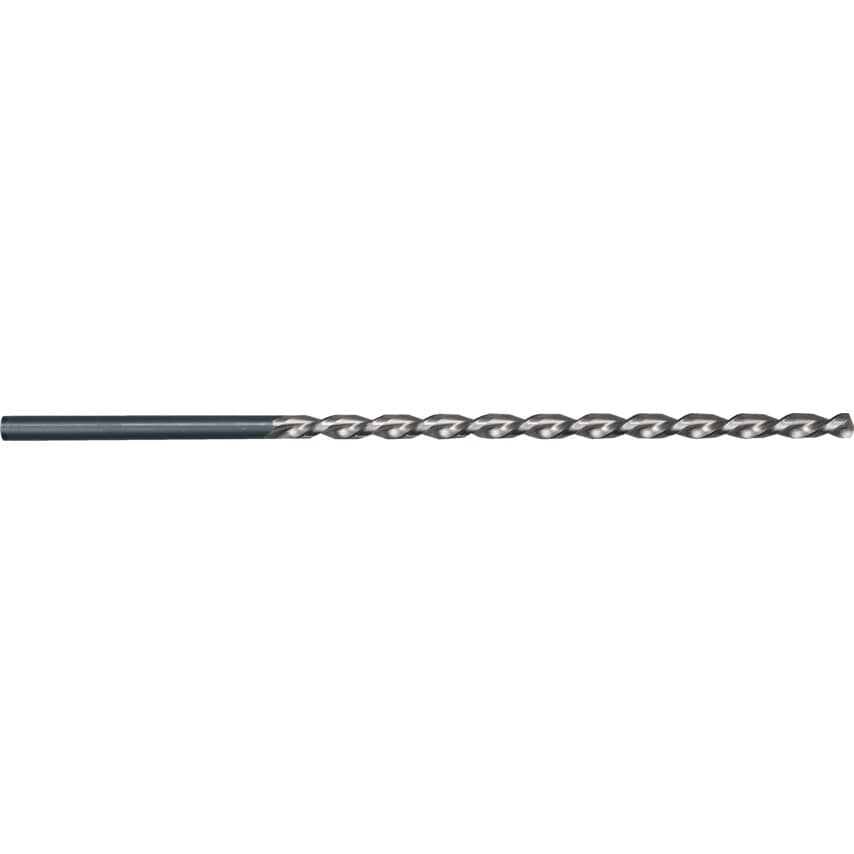

Series 502 HSSHigh Helix (Parabolic Flute) Straight Shank Extra Length Drills
Metric
Robust tool for use in difficult conditions in extremely deep holes when swarf congestion prevents an adequate flow of coolant. For use in steels and cast iron having a tensile strength of up to 1000N/mm2. Manufactured to DIN 1869.
| Overall Length | 215mm |
| Drill Diameter | 6.5mm |
| Number of Flutes | 2 |
| Flute Type | Parabolic |
| Flute Length | 150mm |
| Coolant Delivery | External |
| Material | HSS |
| System of Measurement | Metric |
| Helix Type | High Helix |
| Web Thickness | Form A |
| Drill Diameter Tolerance | H8 |
| Drill Length Type | Extra Length |
| Shank Diameter Tolerance | F11 |
| Finish/Coating | Steam Tempered |
| MFR Part No. | 00502 006.500 |
| Flute Construction | Ground flutes |
| Shank Type | Straight |
| Standards Met | DIN 1869 |
| Number of Pieces | 1 |
| Point Angle | 130\u00b0 |
| Cutting Direction | Right Hand |
| Series | 502 |
| Point Type | Conventional |
