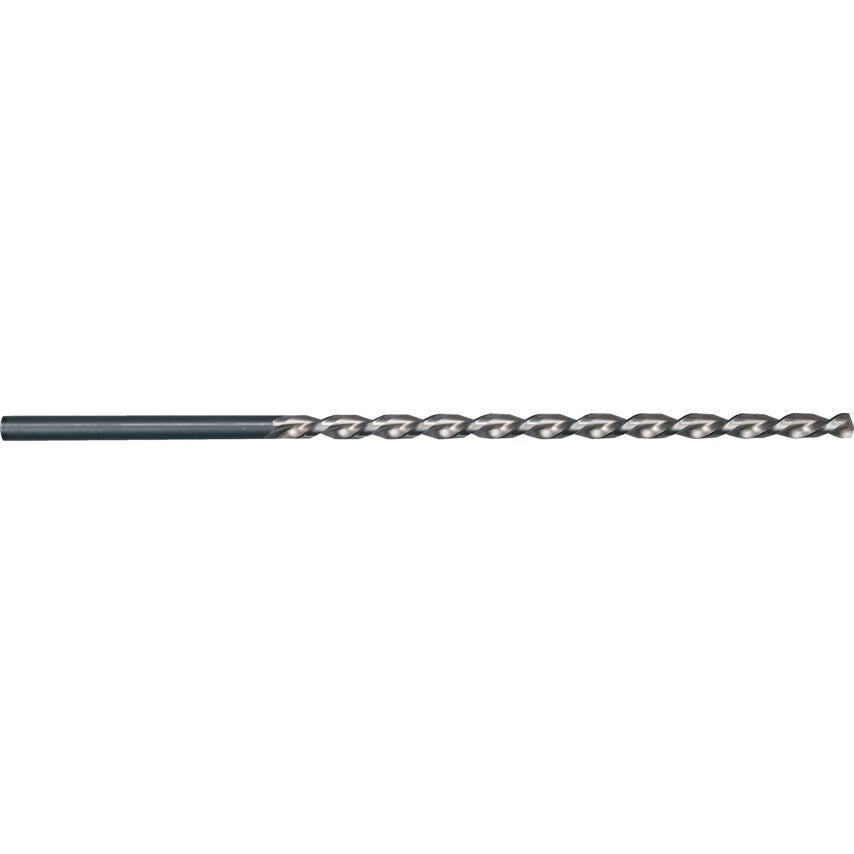

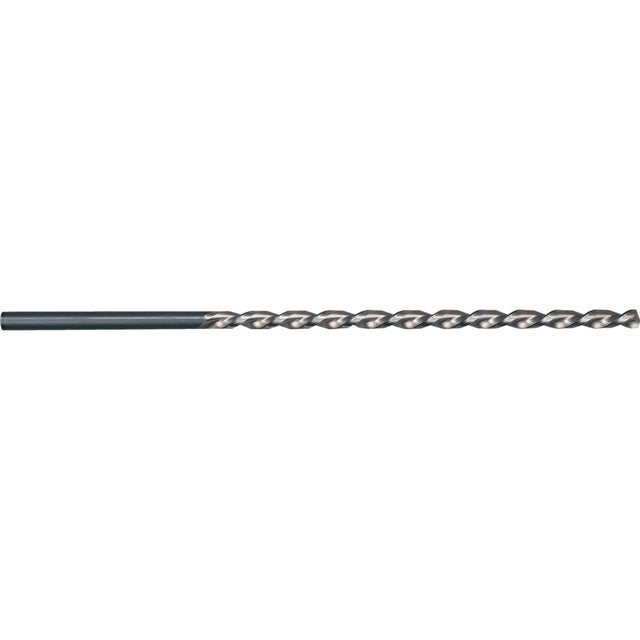

Series 502 HSSHigh Helix (Parabolic Flute) Straight Shank Extra Length Drills
Metric
Robust tool for use in difficult conditions in extremely deep holes when swarf congestion prevents an adequate flow of coolant. For use in steels and cast iron having a tensile strength of up to 1000N/mm2. Manufactured to DIN 1869.
| Flute Type | Parabolic |
| Standards Met | DIN 1869 |
| Flute Length | 155mm |
| Coolant Delivery | External |
| Shank Diameter Tolerance | F11 |
| Point Angle | 130\u00b0 |
| Number of Flutes | 2 |
| Drill Diameter Tolerance | H8 |
| Number of Pieces | 1 |
| Cutting Direction | Right Hand |
| System of Measurement | Metric |
| Overall Length | 225mm |
| Flute Construction | Ground flutes |
| Helix Type | High Helix |
| Material | HSS |
| Finish/Coating | Steam Tempered |
| Series | 502 |
| MFR Part No. | 00502 007.500 |
| Web Thickness | Form A |
| Point Type | Conventional |
