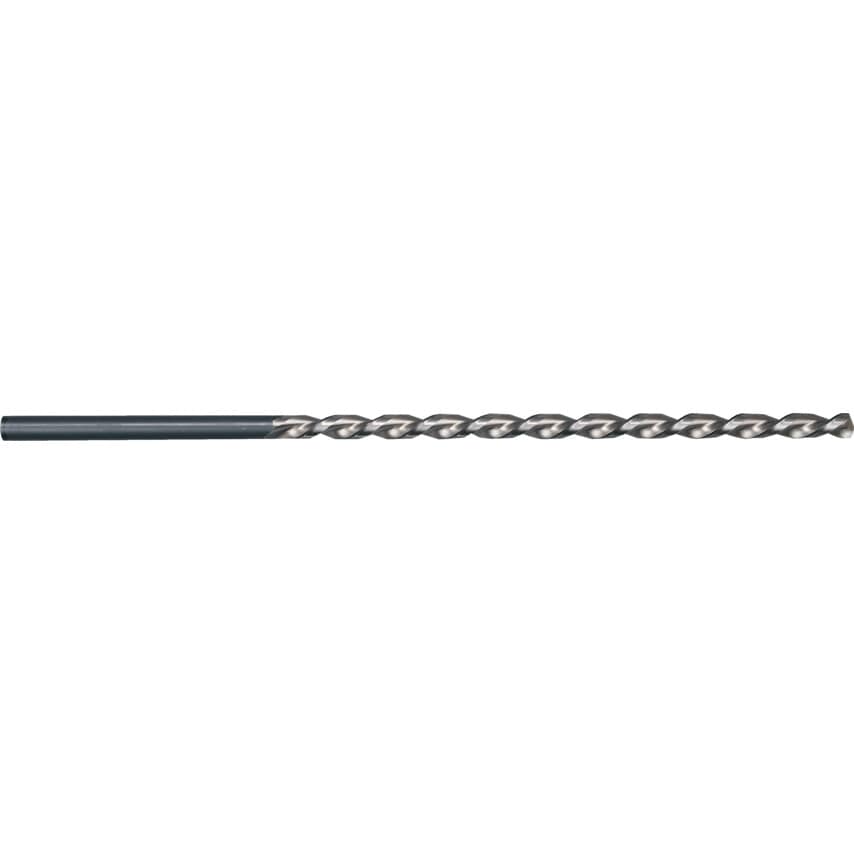

Series 502 HSSHigh Helix (Parabolic Flute) Straight Shank Extra Length Drills
Metric
Robust tool for use in difficult conditions in extremely deep holes when swarf congestion prevents an adequate flow of coolant. For use in steels and cast iron having a tensile strength of up to 1000N/mm2. Manufactured to DIN 1869.
| Number of Flutes | 2 |
| Series | 502 |
| Material | HSS |
| Coolant Delivery | External |
| Finish/Coating | Steam Tempered |
| System of Measurement | Metric |
| Point Type | Conventional |
| Web Thickness | Form A |
| Point Angle | 130\u00b0 |
| Overall Length | 165mm |
| Standards Met | DIN 1869 |
| Flute Length | 115mm |
| Number of Pieces | 1 |
| Helix Type | High Helix |
| Cutting Direction | Right Hand |
| MFR Part No. | 00502 003.500 |
| Drill Diameter Tolerance | H8 |
| Shank Diameter Tolerance | F11 |
| Flute Type | Parabolic |
| Flute Construction | Ground flutes |
