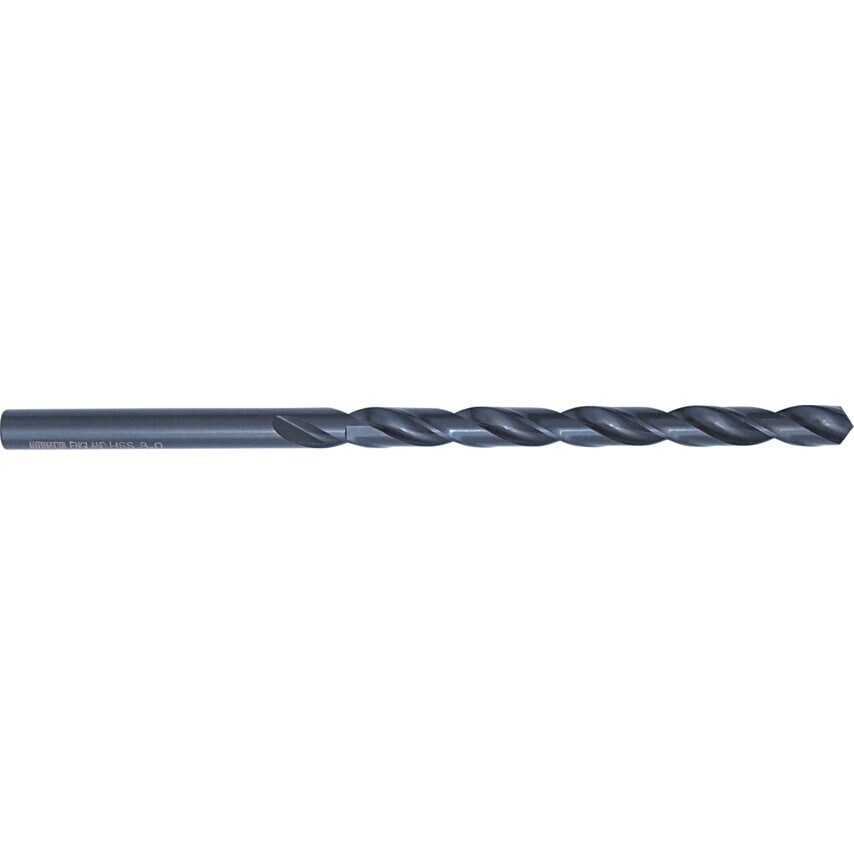

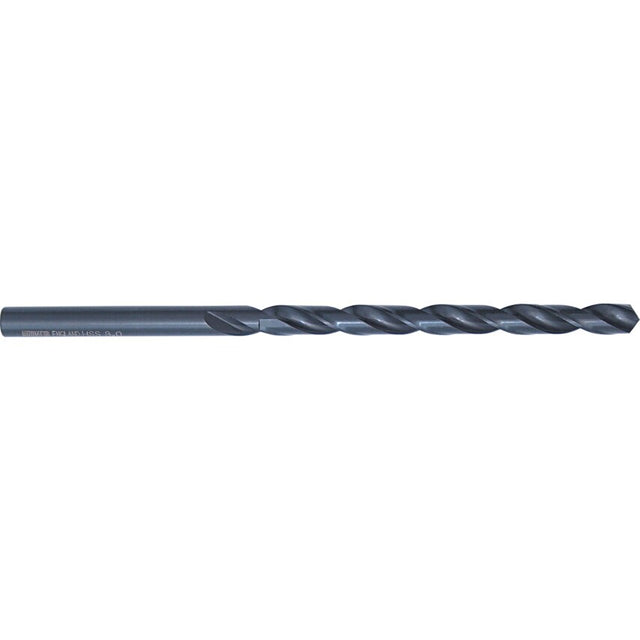

Series 502 HSSHigh Helix (Parabolic Flute) Straight Shank Extra Length Drills
Metric
Robust tool for use in difficult conditions in extremely deep holes when swarf congestion prevents an adequate flow of coolant. For use in steels and cast iron having a tensile strength of up to 1000N/mm2. Manufactured to DIN 1869.
| Series | 502 |
| Flute Type | Parabolic |
| Flute Construction | Ground flutes |
| Standards Met | DIN 1869 |
| Number of Pieces | 1 |
| Finish/Coating | Nitride |
| Flute Length | 135mm |
| Web Thickness | Form A |
| Material | HSS |
| System of Measurement | Metric |
| Cutting Direction | Right Hand |
| Overall Length | 195mm |
| Drill Diameter Tolerance | H8 |
| Helix Type | High Helix |
| Shank Diameter Tolerance | H8 |
| Coolant Delivery | External |
| MFR Part No. | 00502 004.900 |
| Point Angle | 130\u00b0 |
| Number of Flutes | 2 |
