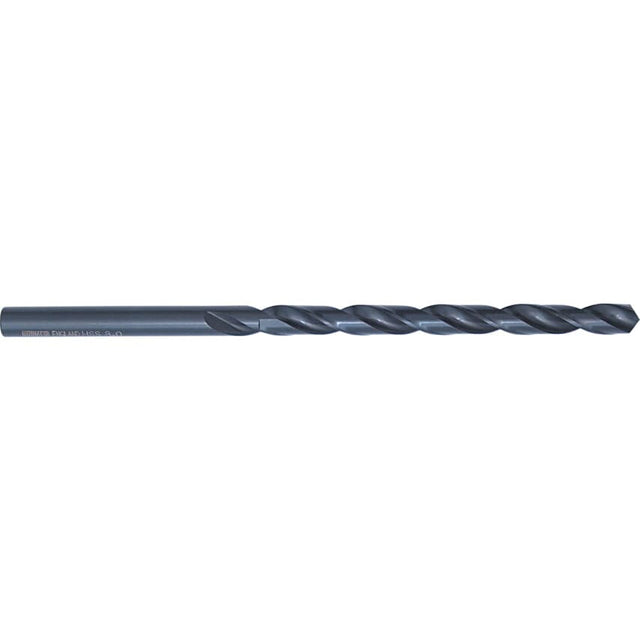

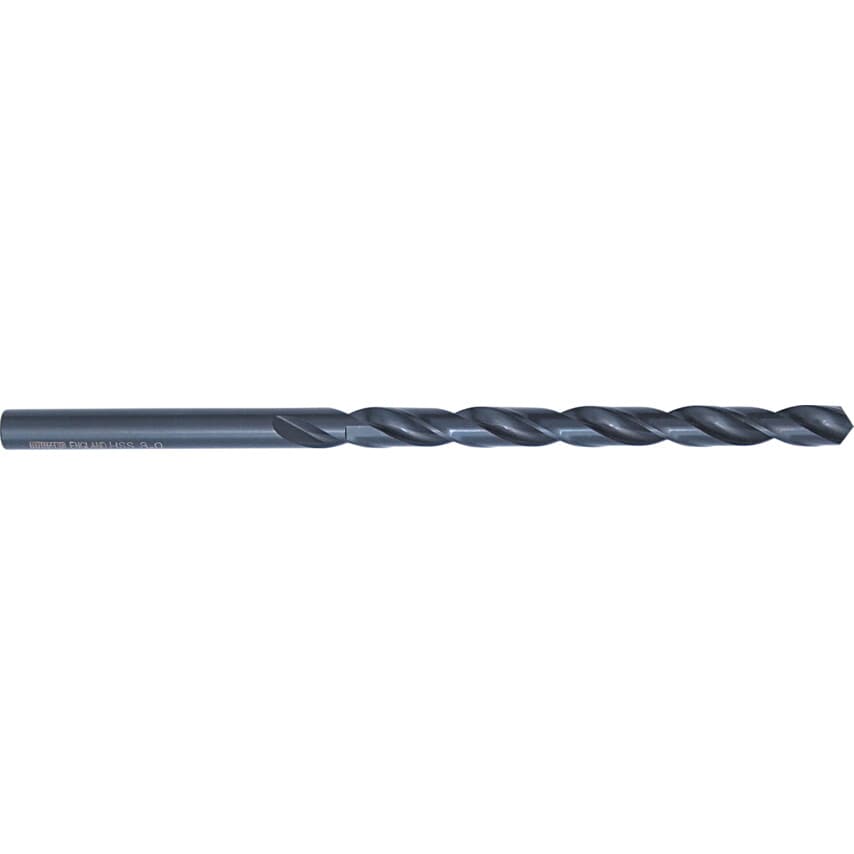

Series 502 HSSHigh Helix (Parabolic Flute) Straight Shank Extra Length Drills
Metric
Robust tool for use in difficult conditions in extremely deep holes when swarf congestion prevents an adequate flow of coolant. For use in steels and cast iron having a tensile strength of up to 1000N/mm2. Manufactured to DIN 1869.
| Helix Type | High Helix |
| Material | HSS |
| MFR Part No. | 00502 006.300 |
| Shank Diameter Tolerance | H8 |
| System of Measurement | Metric |
| Standards Met | DIN 1869 |
| Flute Length | 150mm |
| Point Angle | 130\u00b0 |
| Overall Length | 215mm |
| Number of Flutes | 2 |
| Flute Type | Parabolic |
| Flute Construction | Ground flutes |
| Web Thickness | Form A |
| Coolant Delivery | External |
| Number of Pieces | 1 |
| Cutting Direction | Right Hand |
| Drill Diameter Tolerance | H8 |
| Series | 502 |
| Finish/Coating | Nitride |
