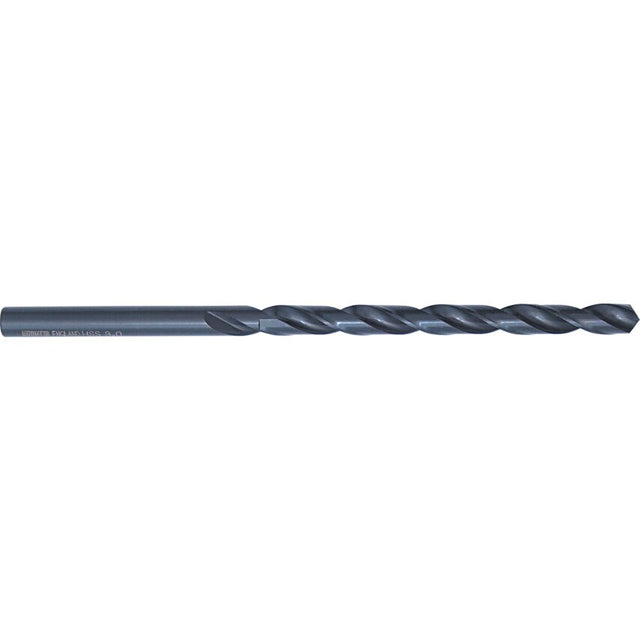

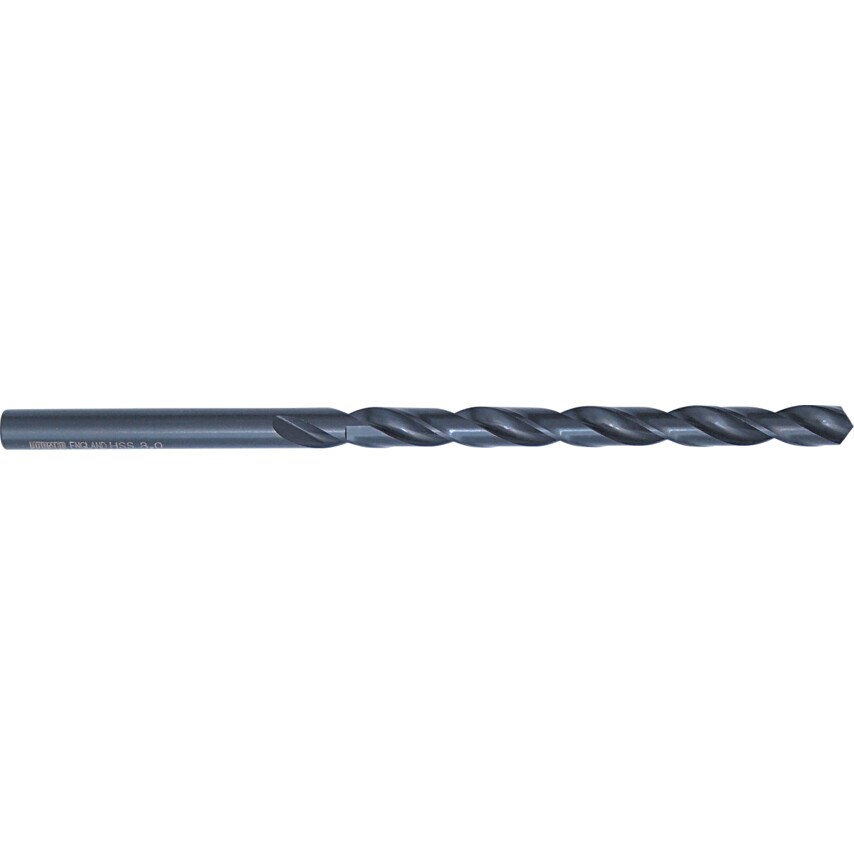

Series 502 HSSHigh Helix (Parabolic Flute) Straight Shank Extra Length Drills
Metric
Robust tool for use in difficult conditions in extremely deep holes when swarf congestion prevents an adequate flow of coolant. For use in steels and cast iron having a tensile strength of up to 1000N/mm2. Manufactured to DIN 1869.
| Series | 502 |
| Cutting Direction | Right Hand |
| System of Measurement | Metric |
| Coolant Delivery | External |
| Shank Type | Straight |
| Drill Diameter Tolerance | H8 |
| Overall Length | 150mm |
| Shank Diameter Tolerance | H8 |
| Standards Met | DIN 1869 |
| Number of Flutes | 2 |
| Number of Pieces | 1 |
| Material | HSS |
| Flute Construction | Ground flutes |
| Finish/Coating | Uncoated |
| Drill Diameter | 2.9mm |
| Drill Length Type | Extra Length |
| Web Thickness | Form A |
| Flute Type | Parabolic |
| Flute Length | 100mm |
| Point Angle | 130\u00b0 |
| MFR Part No. | 00502 002.900 |
| Helix Type | High Helix |
