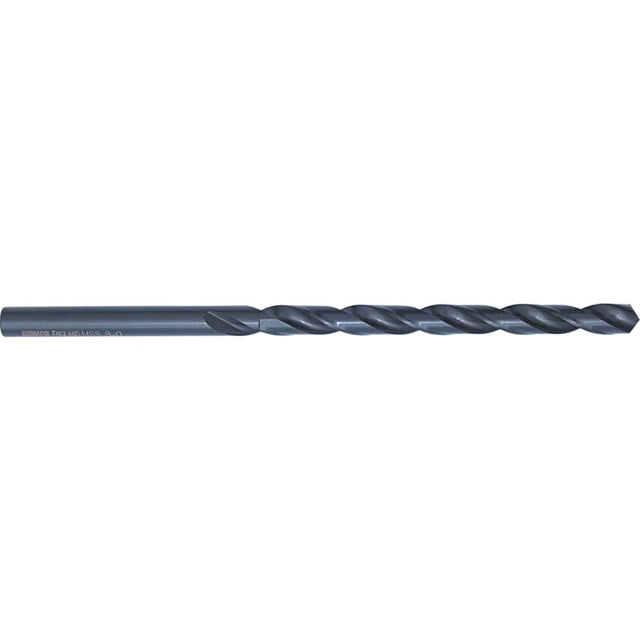

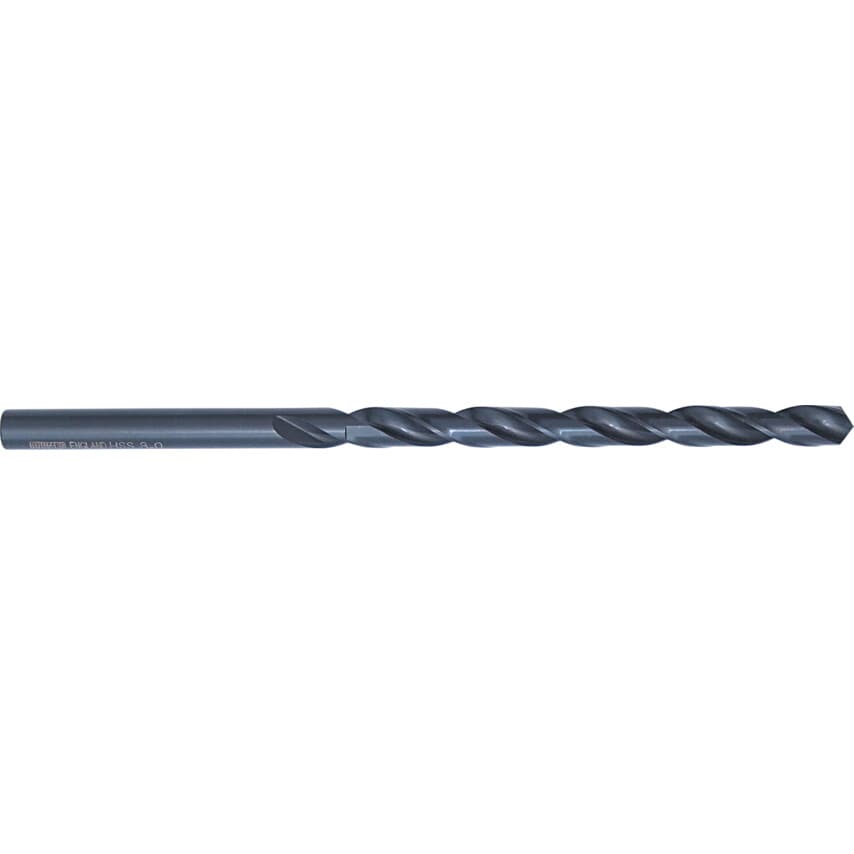

Series 667 HSS Straight Shank Long SeriesDrills
TiN Coated - Metric
For the drilling of deeper holes and for use with drill bushings. For machining alloyed and unalloyed steel, cast steel, cast iron, German silver and graphite. Type N. Manufactured to DIN 340.
| Helix Type | Normal Helix |
| System of Measurement | Metric |
| Point Angle | 118\u00b0 |
| Web Thickness | Form A |
| Flute Construction | Ground flutes |
| Coolant Delivery | External |
| Drill Diameter Tolerance | H8 |
| Flute Length | 62mm |
| Finish/Coating | TiN |
| Point Type | Standard |
| Number of Pieces | 1 |
| Material | HSS |
| Overall Length | 95mm |
| Cutting Direction | Right Hand |
| Standards Met | DIN 340 |
| Series | 667 |
| Flute Type | Spiral |
