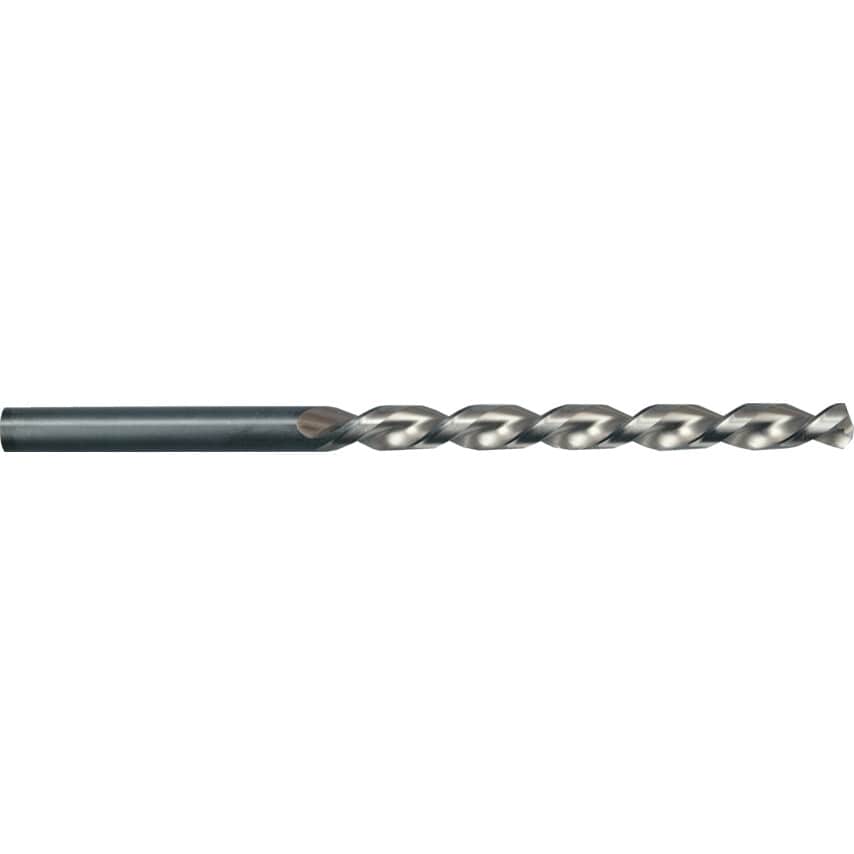

Series 535 HSSHigh Helix (Parabolic Flute) Straight Shank Long Series Drill
Inch
A robust drill for drilling deeper holes in difficult conditions when swarf congestion prevents an adequate flow of coolant from reaching the drill point. For use in steel and cast iron having a hardness of up to 1000N/mm2. Manufactured to DIN340.
| Web Thickness | Form A |
| Helix Type | High Helix |
| System of Measurement | Inch |
| Number of Flutes | 2 |
| Material | HSS |
| Standards Met | DIN 340 |
| Flute Length | 115mm |
| Finish/Coating | Bright |
| Point Type | Thinned Point |
| Drill Diameter Tolerance | H8 |
| Series | 535 |
| Coolant Delivery | External |
| Point Angle | 130\u00b0 |
| Flute Construction | Ground flutes |
| Overall Length | 175mm |
| Flute Type | Spiral |
| Shank Diameter Tolerance | H8 |
| Number of Pieces | 1 |
| Cutting Direction | Right Hand |
| MFR Part No. | 00535 008.730 |
