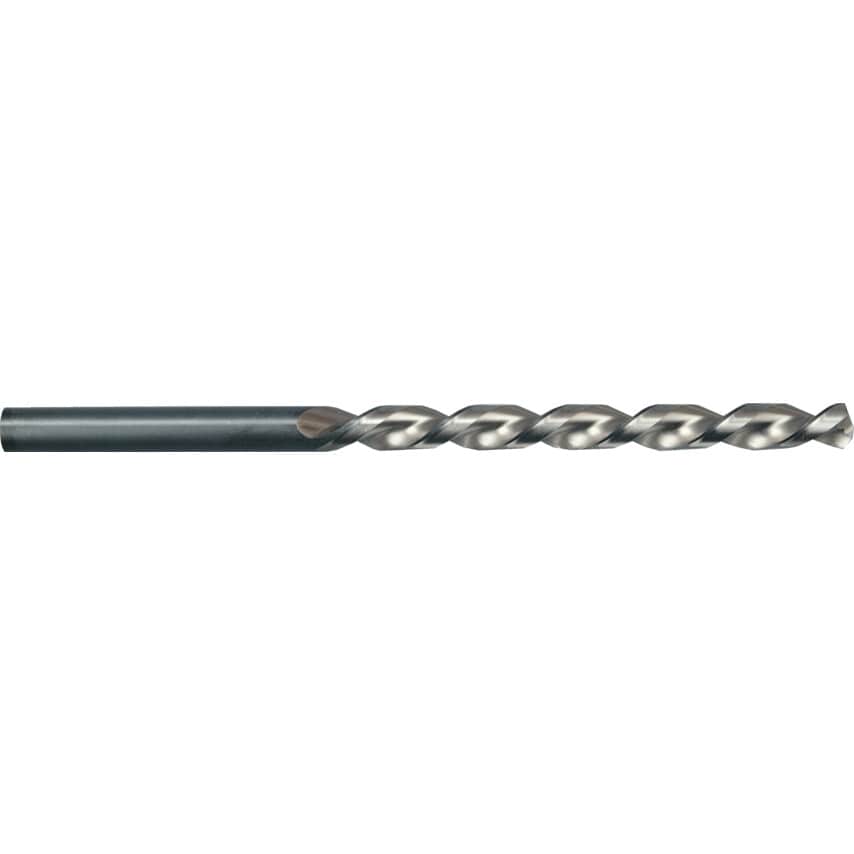

Series 535 HSSHigh Helix (Parabolic Flute) Straight Shank Long Series Drill
Metric
A robust drill for drilling deeper holes in difficult conditions when swarf congestion prevents an adequate flow of coolant from reaching the drill point. For use in steel and cast iron having a hardness of up to 1000N/mm2. Manufactured to DIN 340.
| Number of Pieces | 1 |
| Cutting Direction | Right Hand |
| Point Type | Thinned Point |
| Flute Length | 97mm |
| Drill Diameter Tolerance | H8 |
| Series | 535 |
| Standards Met | DIN 340 |
| System of Measurement | Metric |
| Flute Construction | Ground flutes |
| Finish/Coating | Bright |
| Helix Type | High Helix |
| Shank Diameter Tolerance | H8 |
| MFR Part No. | 00535 006.400 |
| Material | HSS |
| Coolant Delivery | External |
| Point Angle | 130\u00b0 |
| Flute Type | Parabolic |
| Overall Length | 148mm |
| Web Thickness | Form A |
| Number of Flutes | 2 |
