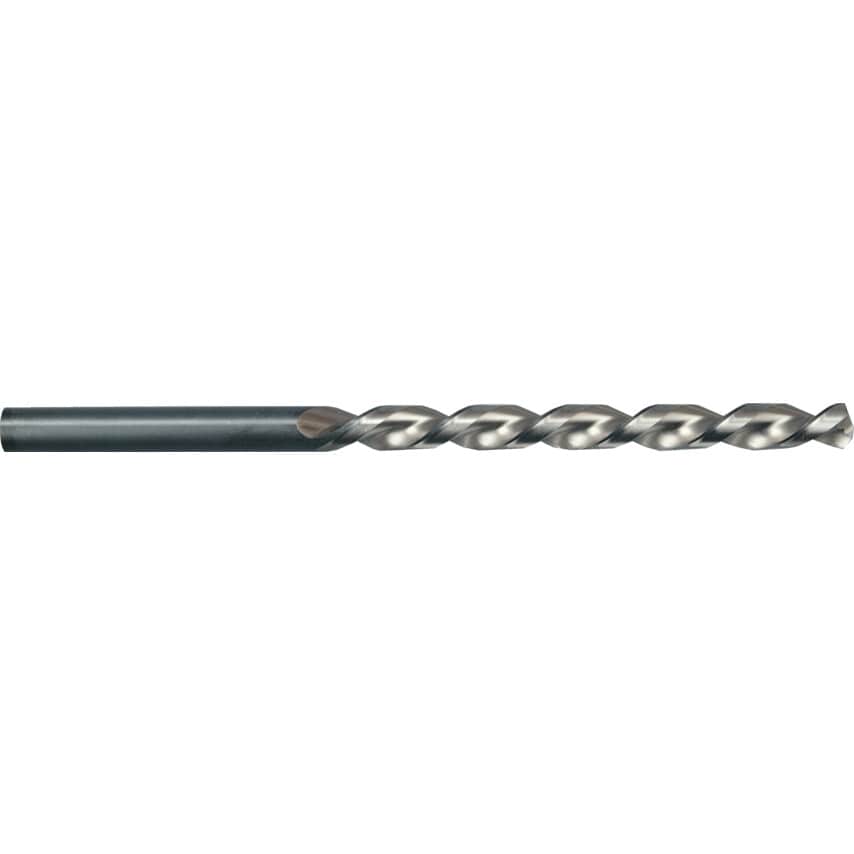

Series 535 HSSHigh Helix (Parabolic Flute) Straight Shank Long Series Drill
Metric
A robust drill for drilling deeper holes in difficult conditions when swarf congestion prevents an adequate flow of coolant from reaching the drill point. For use in steel and cast iron having a hardness of up to 1000N/mm2. Manufactured to DIN 340.
| Flute Type | Parabolic |
| System of Measurement | Metric |
| Cutting Direction | Right Hand |
| Shank Diameter Tolerance | H8 |
| Series | 535 |
| Point Angle | 130\u00b0 |
| Number of Pieces | 1 |
| Drill Diameter | 11mm |
| Flute Length | 128mm |
| Number of Flutes | 2 |
| Drill Length Type | Long Series |
| Standards Met | DIN 340 |
| Drill Diameter Tolerance | H8 |
| MFR Part No. | 00535 011.000 |
| Flute Construction | Ground flutes |
| Shank Type | Straight |
| Web Thickness | Form A |
| Overall Length | 195mm |
| Material | HSS |
| Finish/Coating | Bright |
| Helix Type | High Helix |
| Coolant Delivery | External |
| Point Type | Thinned Point |
