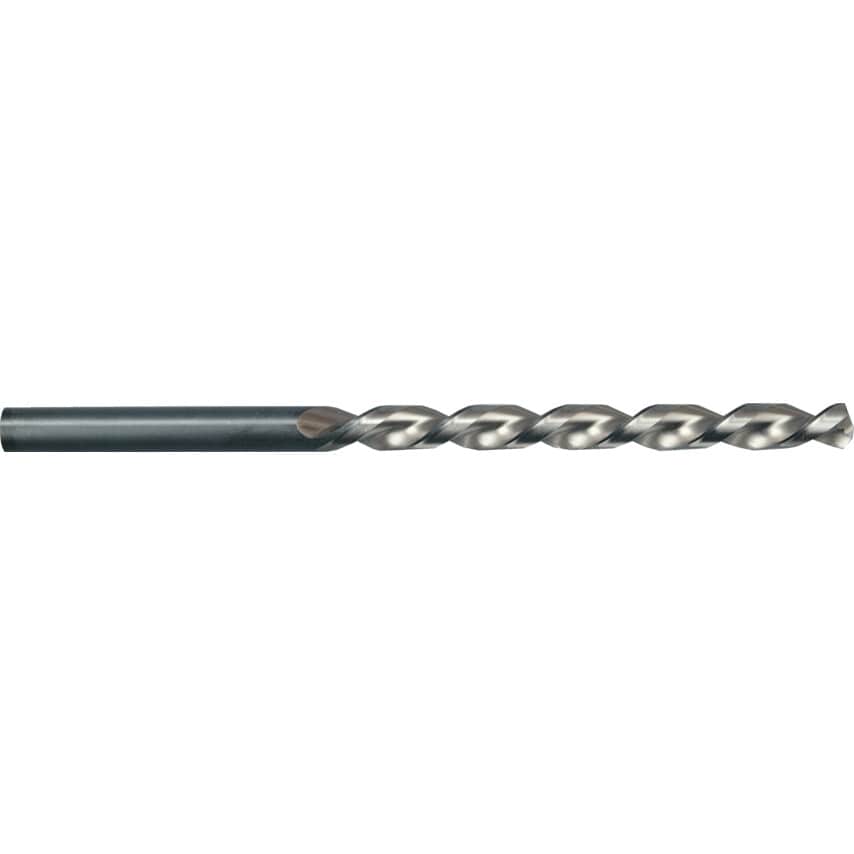

Series 535 HSSHigh Helix (Parabolic Flute) Straight Shank Long Series Drill
Inch
A robust drill for drilling deeper holes in difficult conditions when swarf congestion prevents an adequate flow of coolant from reaching the drill point. For use in steel and cast iron having a hardness of up to 1000N/mm2. Manufactured to DIN340.
Coolant Delivery | External |
Number of Pieces | 1 |
Finish/Coating | Bright |
Standards Met | DIN 340 |
Flute Construction | Ground flutes |
Drill Diameter Tolerance | H8 |
Flute Length | 109mm |
Flute Type | Spiral |
MFR Part No. | 00535 007.940 |
Number of Flutes | 2 |
Cutting Direction | Right Hand |
Material | HSS |
Helix Type | High Helix |
Overall Length | 165mm |
Point Angle | 130\u00b0 |
Point Type | Thinned Point |
Series | 535 |
Shank Diameter Tolerance | H8 |
System of Measurement | Inch |
Web Thickness | Form A |
