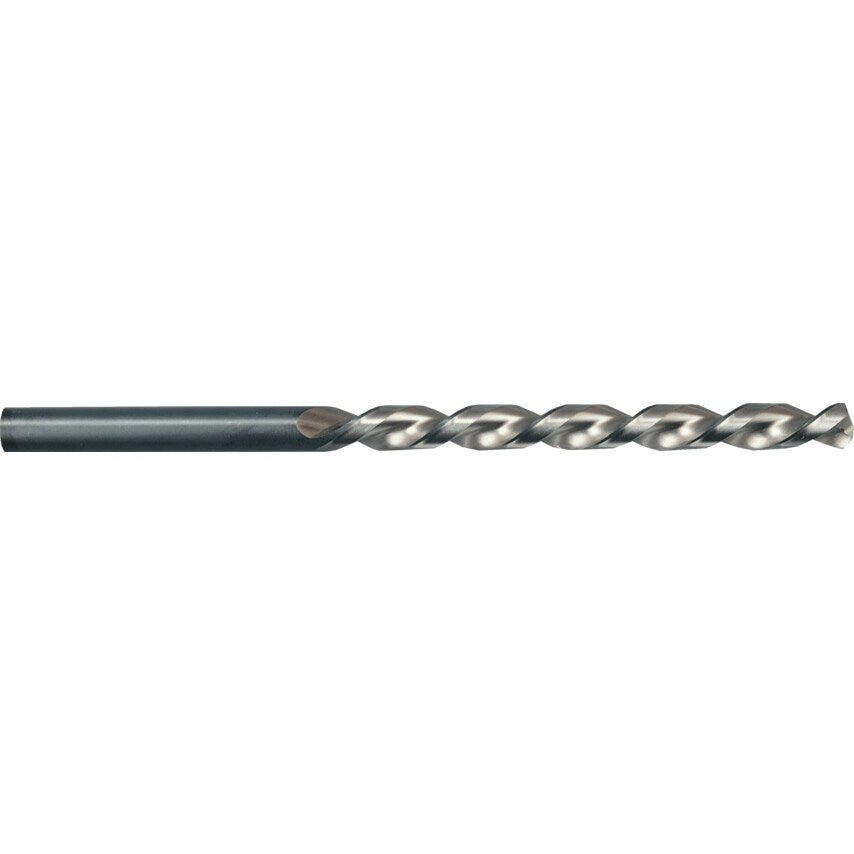

535 3.70mm HSS GT100 L/Ss/S Drill

Guhring  |  SKU: ZT3951964S
Cash
£16.49
Standard price
Pro
£16.00
With tools.com Pro
Finance
£0.34
/week
Approx. See your options
Save on every purchase
Theft replacement plan
Series 535 HSSHigh Helix (Parabolic Flute) Straight Shank Long Series Drill Metric A robust drill for drilling deeper holes in difficult conditions when swarf congestion prevents an adequate flow of coolant from reaching the drill point. For use in steel and cast iron having a hardness of up to 1000N/mm2. Manufactured to DIN 340.
Overall Length 112mm
Series 535
Flute Length 73mm
Drill Diameter Tolerance H8
Coolant Delivery External
System of Measurement Metric
Number of Pieces 1
Shank Diameter Tolerance H8
Web Thickness Form A
Number of Flutes 2
Helix Type High Helix
Finish/Coating Bright
Point Angle 130\u00b0
Cutting Direction Right Hand
Flute Type Parabolic
Flute Construction Ground flutes
Shank Type Straight
MFR Part No. 00535 003.700
Drill Diameter 3.7mm
Drill Length Type Long Series
Material HSS
Point Type Thinned Point
Standards Met DIN 340
