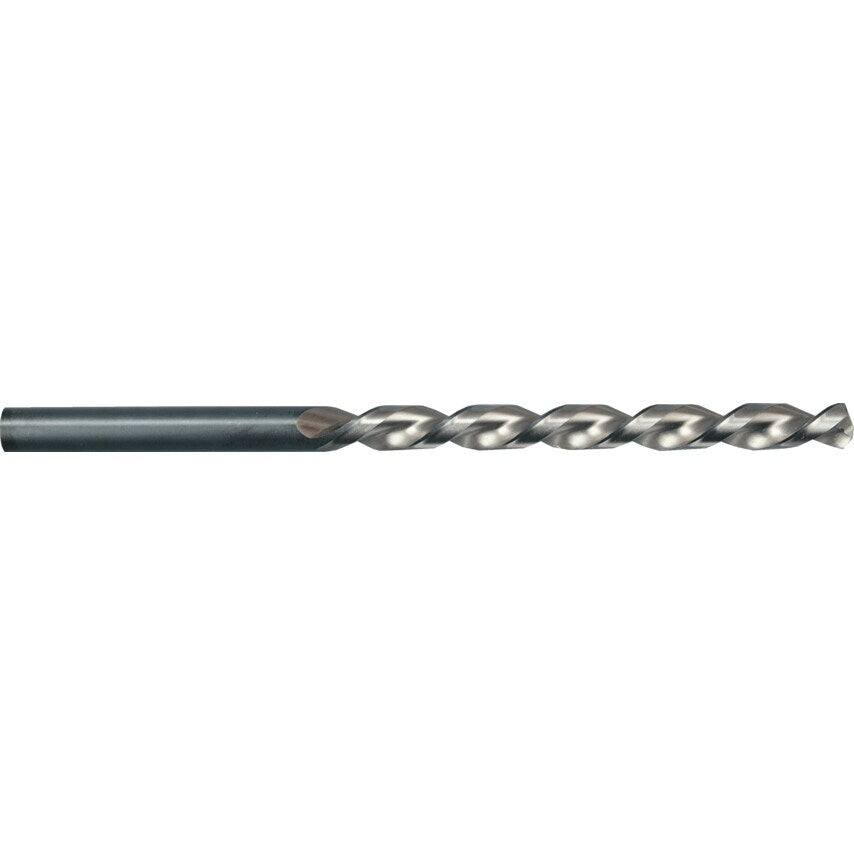

Series 535 HSSHigh Helix (Parabolic Flute) Straight Shank Long Series Drill
Metric
A robust drill for drilling deeper holes in difficult conditions when swarf congestion prevents an adequate flow of coolant from reaching the drill point. For use in steel and cast iron having a hardness of up to 1000N/mm2. Manufactured to DIN 340.
Coolant Delivery | External |
Flute Length | 109mm |
Cutting Direction | Right Hand |
Flute Type | Parabolic |
Shank Diameter Tolerance | H8 |
Number of Flutes | 2 |
Flute Construction | Ground flutes |
Series | 535 |
Helix Type | High Helix |
Point Angle | 130\u00b0 |
Overall Length | 165mm |
System of Measurement | Metric |
Material | HSS |
Finish/Coating | Bright |
MFR Part No. | 00535 008.100 |
Drill Diameter Tolerance | H8 |
Number of Pieces | 1 |
Web Thickness | Form A |
Standards Met | DIN 340 |
Point Type | Thinned Point |
