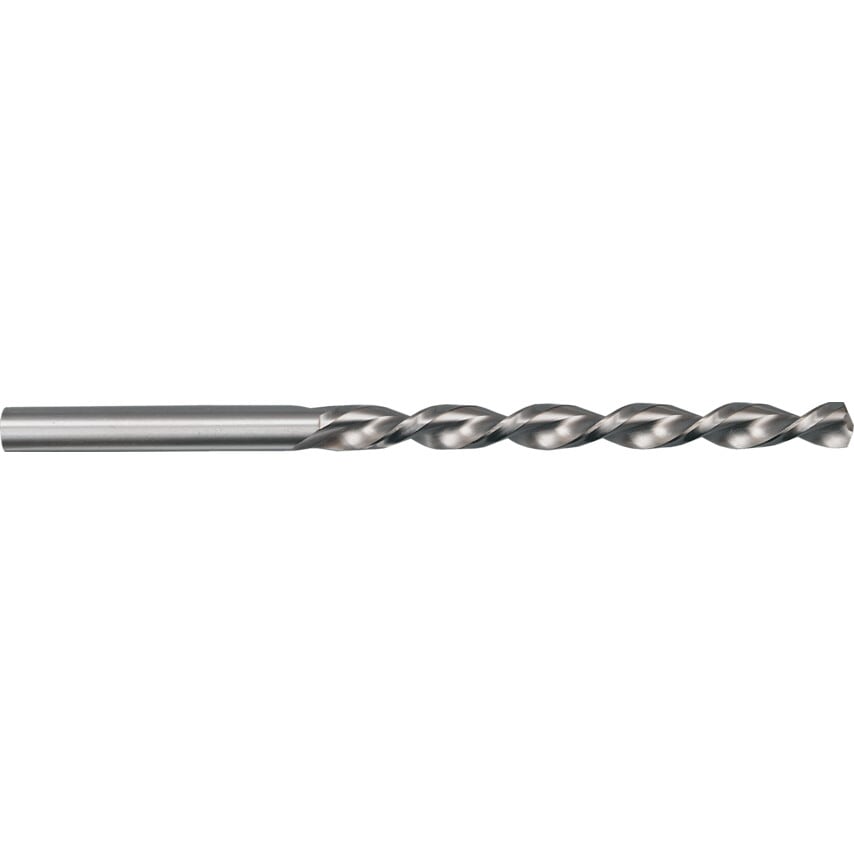

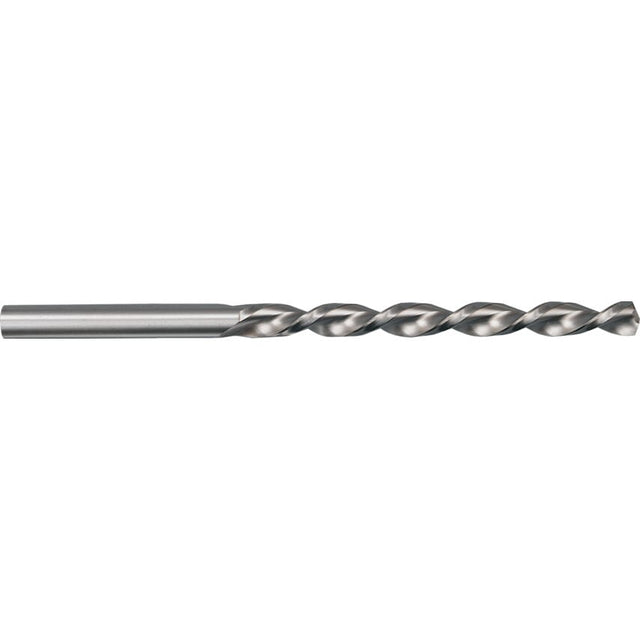

Series 501 HSS High Helix (Parabolic Flute) Straight Shank Long Series Drill
Metric
A special drill for drilling deep holes in soft materials and those producing long stringy swarf with a case hardness of 500N/mm2 such as mild steel, aluminium, aluminium alloys, zinc, refined copper and wood.
Manufactured to DIN 340.
| Drill Diameter Tolerance | H8 |
| Flute Type | Parabolic |
| Finish/Coating | Bright |
| Number of Pieces | 1 |
| Coolant Delivery | External |
| Cutting Direction | Right Hand |
| Flute Length | 134mm |
| System of Measurement | Metric |
| Shank Diameter Tolerance | H8 |
| Material | HSS |
| Number of Flutes | 2 |
| Helix Type | High Helix |
| Standards Met | DIN 340 |
| Point Angle | 130\u00b0 |
| Series | 501 |
| Web Thickness | Form A |
| Overall Length | 205mm |
| MFR Part No. | 00501 012.000 |
| Point Type | Thinned Point |
| Flute Construction | Ground flutes |
