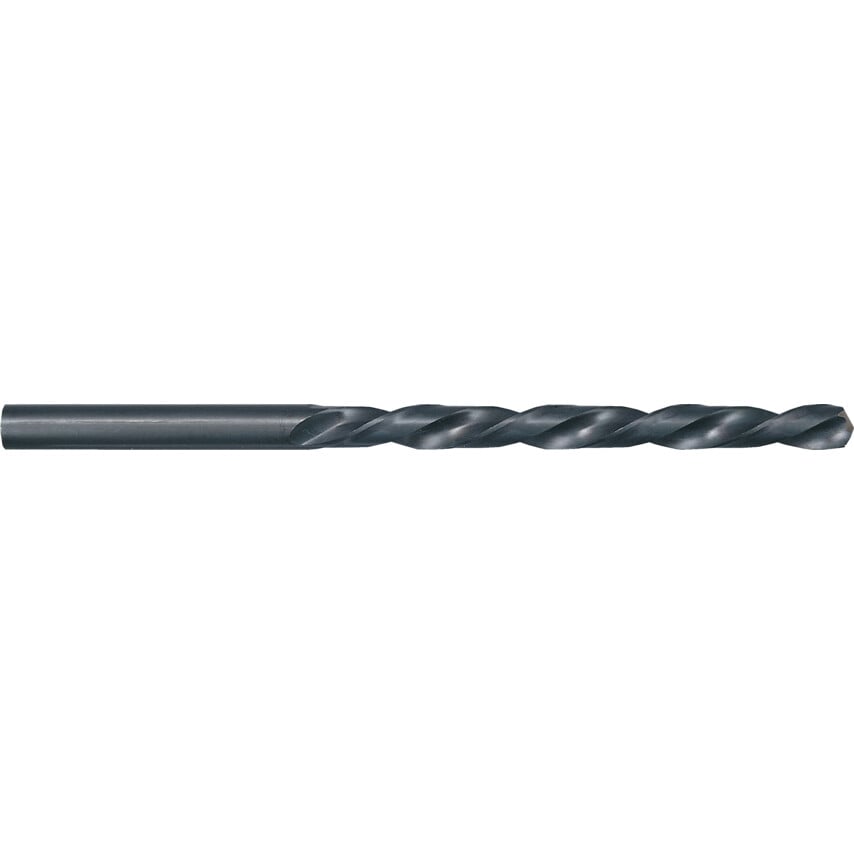

Series 317 HSS-Co Straight Shank Long Series Drills
Metric
High heat resistance with wide chip space for use with drill bushings. For drilling alloyed and unalloyed steels and castings with a tensile strength over 800N/mm2. Type N. Manufactured to DIN340.
Number of Flutes | 2 |
Material | Cobalt High Speed Steel |
Drill Diameter | 14mm |
System of Measurement | Metric |
Shank Type | Straight |
Web Thickness | Form A |
Overall Length | 214mm |
Point Angle | 118\u00b0 |
Drill Diameter Tolerance | H8 |
Finish/Coating | Steam Tempered |
Standards Met | DIN 340 |
Number of Pieces | 1 |
Drill Length Type | Long Series |
Flute Type | Spiral |
Coolant Delivery | External |
Cutting Direction | Right Hand |
Helix Type | Normal Helix |
Series | 317 |
Shank Diameter Tolerance | H8 |
MFR Part No. | 00317 014.000 |
Flute Length | 140mm |
