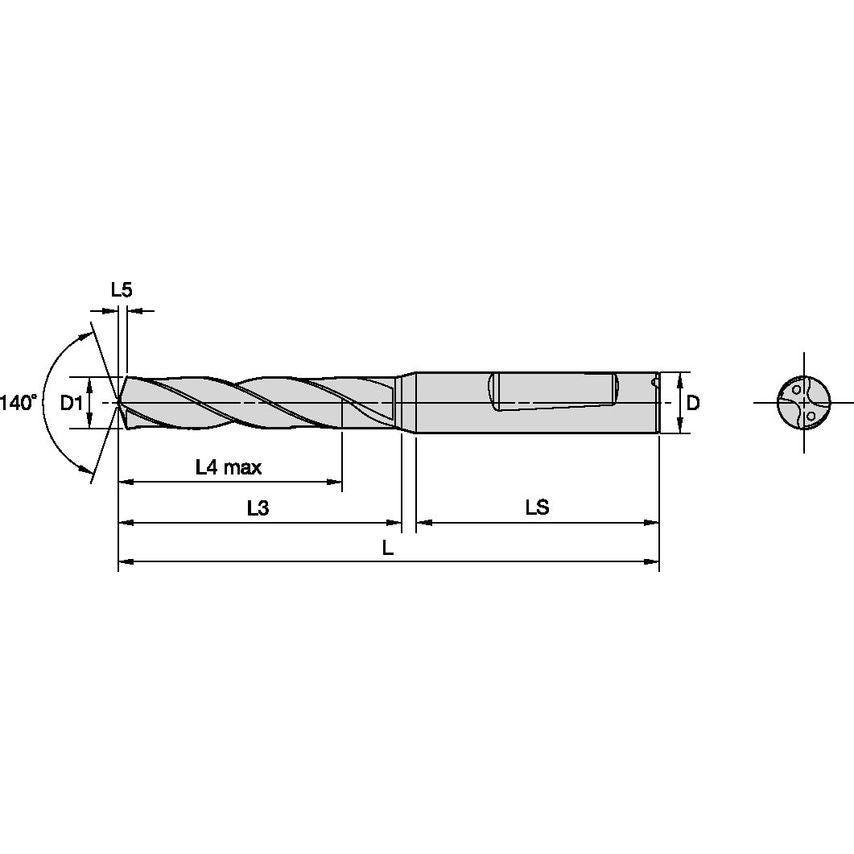

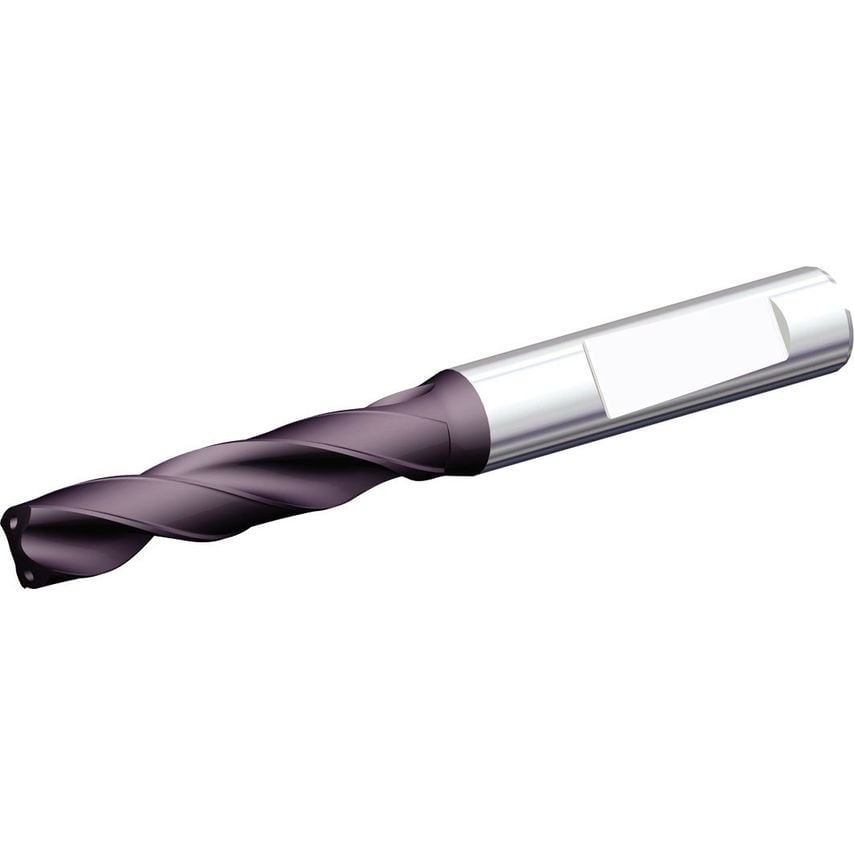

Kenna Universal Drills With Through CoolantSolid Carbide Drills
| Coolant Supplied | Yes |
| Unit Measured | Metric |
| Flute Construction | Helical Flute |
| Hand Preference | Right |
| MFR Part No. | 2264864 |
| Primary Material | Steel |
| Assembly Length | 82.267mm |
| Coolant Delivery | Off-center Axial Coolant |
| Adapter Style | Whistle Notch 2 CylindricalEnd |
| Shank Length | 48.0000mm |
| Coolant Diameter | 2.2400mm (0.0193in) |
| Drill Point | 2.733mm |
| Drill Diameter Tolerance | 0.007000 to 0.025000mm |
| Helix Type | Right Hand Helix/Flute |
| Drill Depth | 63mm | 63.0000mm |
| Drill Diameter | 15.8000mm |
| Material | Carbide |
| Flute Length | 83mm | 83.0000mm |
| Number of Flutes | 2 |
| Finish/Coating | TiAlN |
| Overall Length | 133mm | 133.0000mm |
| Clamping Length | 48mm |
| Functional Length | 130.2670mm |
| Adapter / Shank / Bore Diameter | 16.0000mm |
| Adapter Type | Cylindrical |
| Helix Angle | 29.095 |
