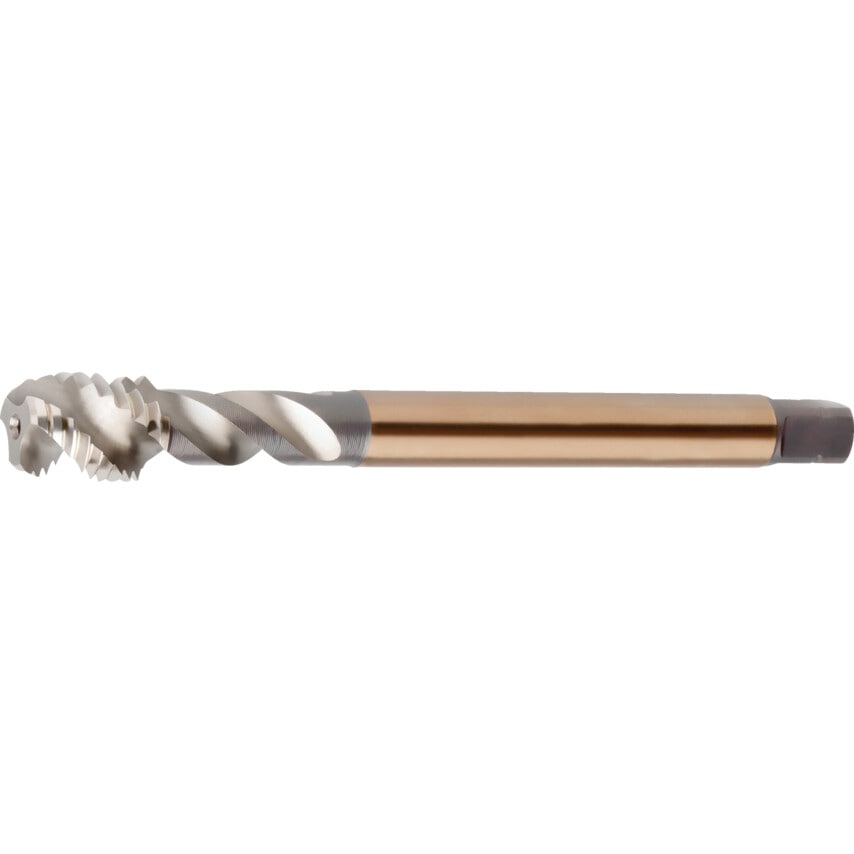

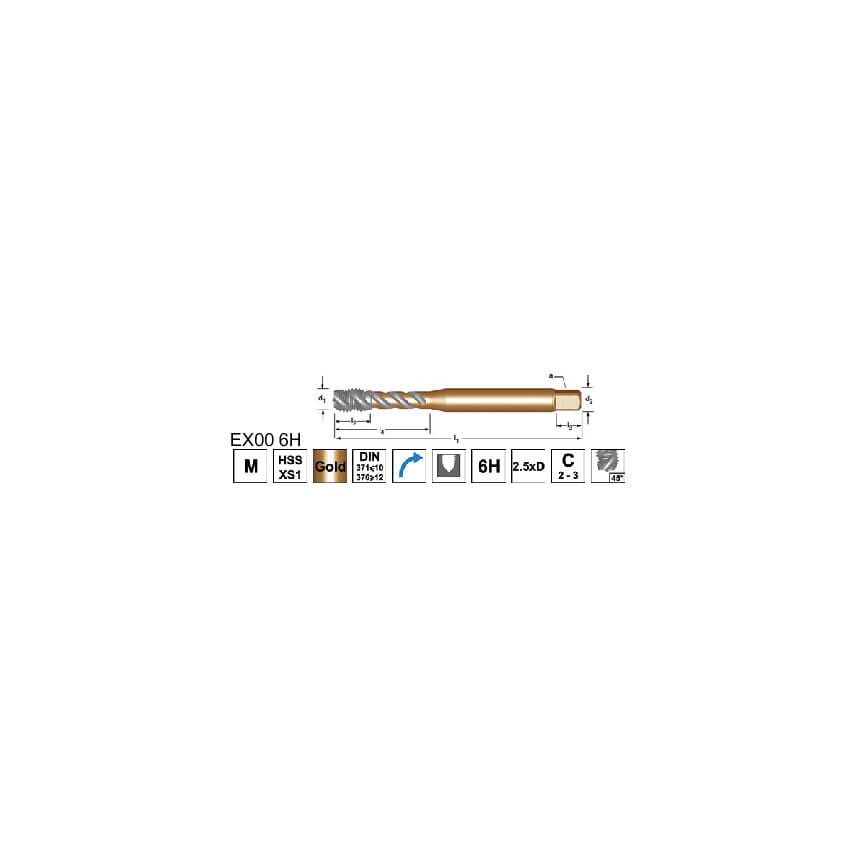

EX00 HSS-E PM Spiral Flute Taps Metric Form Multi-application machine taps offering superb performance in a wide range of materials 2.5xD Available in a choice of finishes: Bright, Steam Tempered or Titanium Nitride Coated (TiN) Spiral Flute for blind holes EX00 available in sizes M2 - M64 Manufactured to DIN 371 <10mm DIN 376 > 12mm Bright Finish - Suitable for Steel, Cast Iron, Titanium, Nickel, Copper and Aluminium
| Helix Angle | 45\u00b0 |
| Square Width | 3.40mm |
| Thread Standard | Metric Coarse |
| Thread Direction | Right Hand |
| Finish/Coating | Bright |
| Overall Length | 63.00mm |
| Dimensions Standard | DIN 371 |
| Pitch | 0.7 |
| Thread Length | 7.0mm |
| Class of Fit | 6H |
| Tap Type | Spiral Flute |
| Number of Flutes | 3 |
| Thread Size | M4 |
| Material | Powdered Metal Cobalt High Speed Steel |
| MFR Part No. | EX00M4 |
| Product Type | Machine Taps |
| Material Grade | M35 |
| Tapping Depth | 21.00mm |
| Series | EX006H |
| Shank Diameter | 4.5mm |
