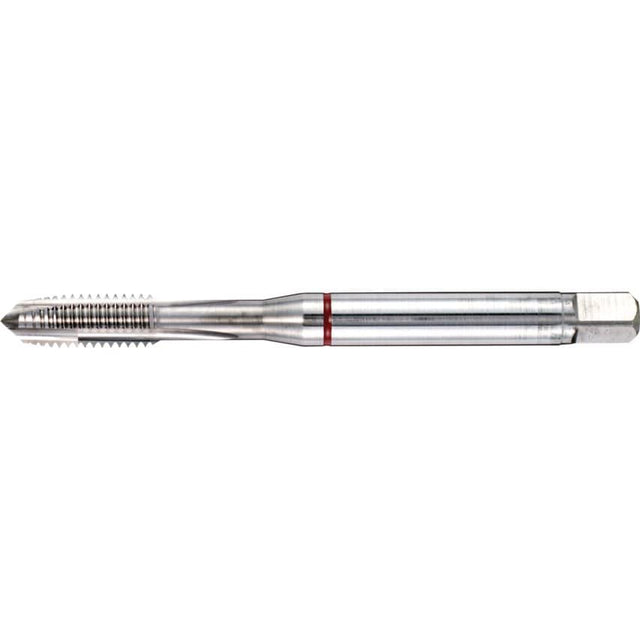

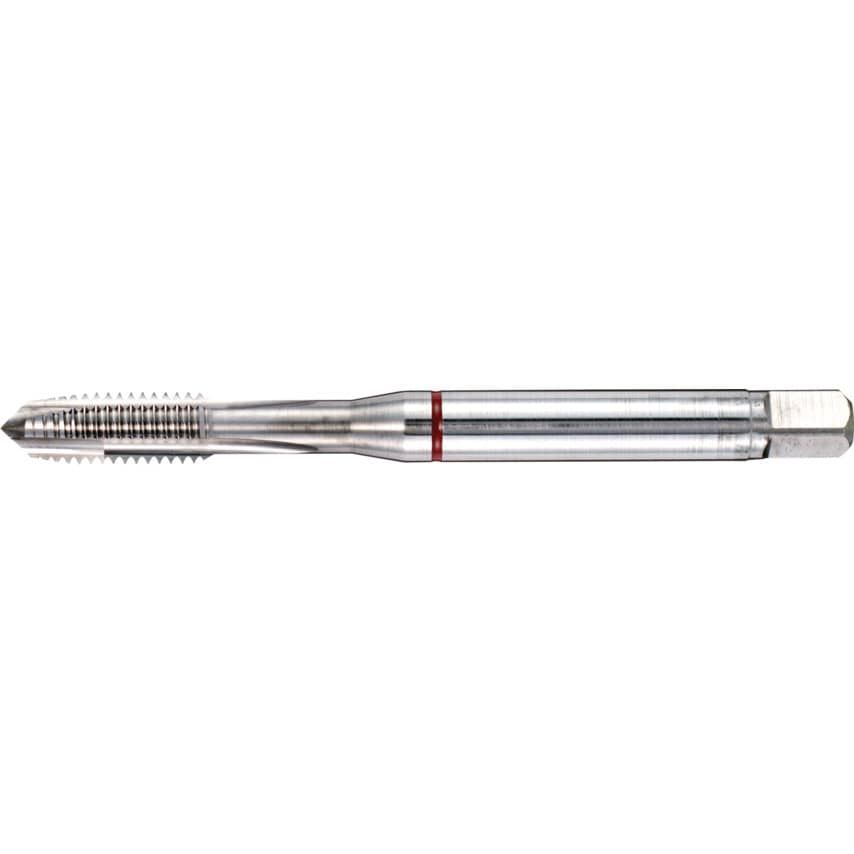

Dormer's application-based range of colour ring coded DIN taps, branded Shark Line, are renowned for their high performance and are an ideal solution when high quality threads are required in specific materials. Extensive research hasled to the development of new features on specific lines, including new coatings and geometries.Red Shark for Alloy SteelsExcellent for Application Good for ApplicationE255 - Bright
| Standards | DIN 376 |
| Material Grade | M35 |
| Tap Application | Through Hole |
| Class of Fit | 6H |
| Application | Steel and Cast Steel |
| Cutting Direction | Right |
| Square Width | 12mm |
| Series | E255 |
| Overall Length | 140mm |
| Shank Diameter | 16mm |
| Number of Flutes | 4 |
| Dimensions Standard | DIN 376 |
| MFR Part No. | E255M20 |
| Shank | Cylindrical Shank with Square |
| Tap Chamfer Style | B 3.5 - 5 |
| Thread Size | M20 |
| Applications | P - Steel and cast steel |
| Material | HSS-E-PM |
| Thread Form | M - Metric coarse |
| Product Series | E255 |
| Thread Length | 30mm |
| Thread Direction | Right Hnd |
| Flute Geometry (FDC) | Spiral\u00a0Point Geometry |
| Unit of Measurement | Metric |
| Finish | Bright |
| Lead | Second |
| Pitch | 2.5mm |
| Finish/Coating | Bright |
| Thread Standard | Metric Coarse |
| Tap Type | Spiral Flute |
