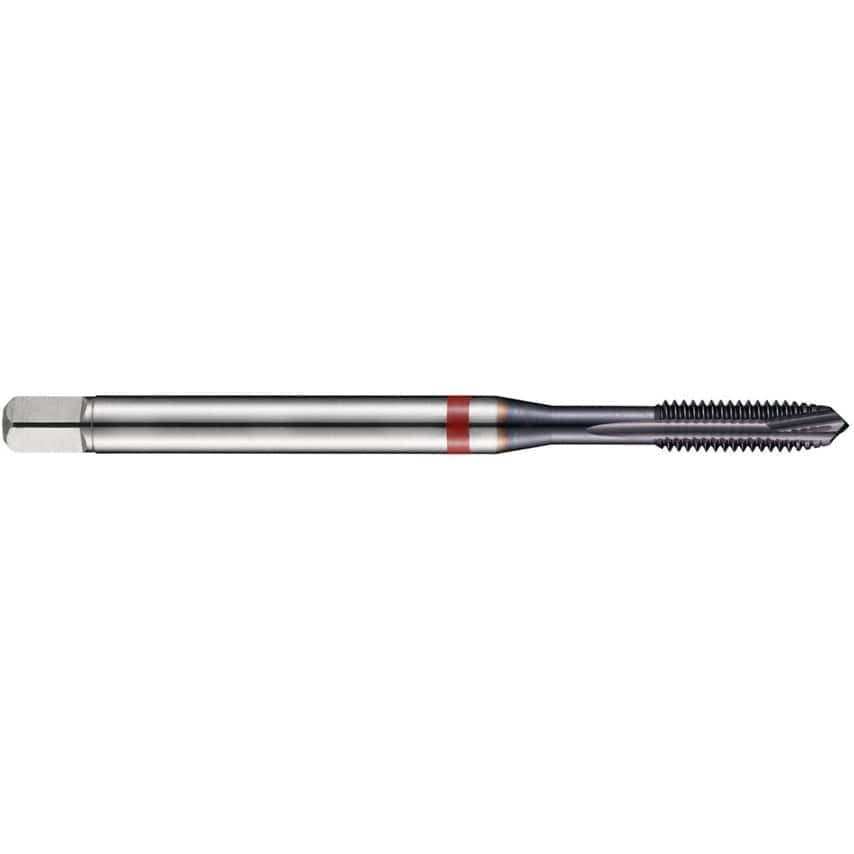

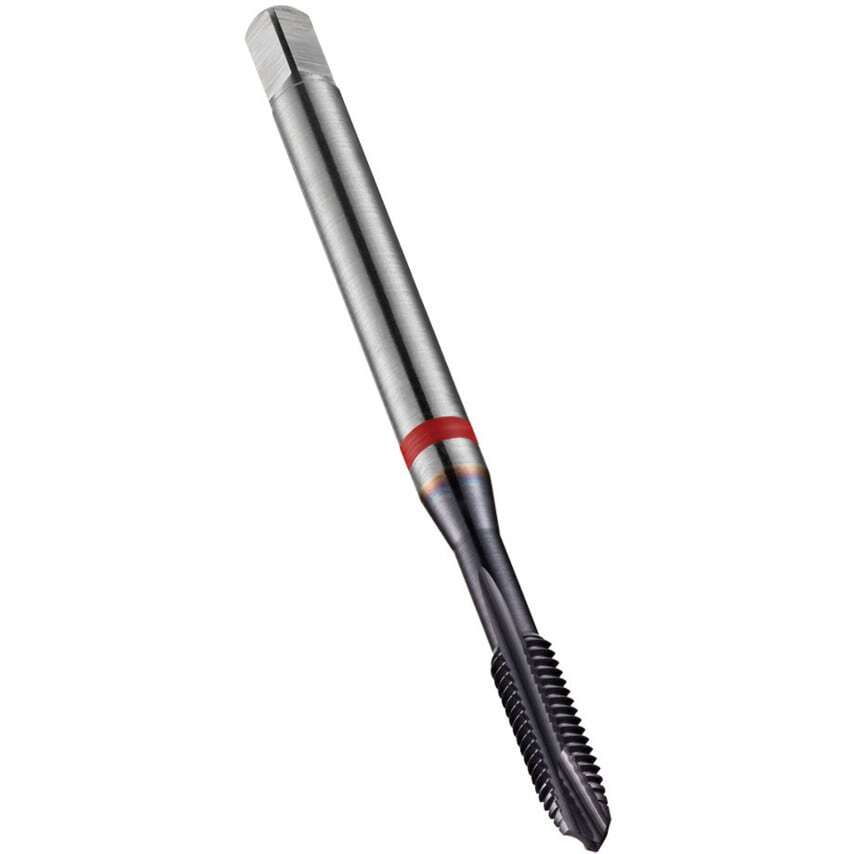

Dormer's application-based range of colour ring coded DIN taps, branded Shark Line, are renowned for their high performance and are an ideal solution when high quality threads are required in specific materials. Extensive research hasled to the development of new features on specific lines, including new coatings and geometries.Red Shark for Alloy SteelsExcellent for Application Good for ApplicationE256 - TiALN
| Finish | TiAlN/Top |
| Dimensions Standard | DIN 371 |
| Lead | Second |
| Square Width | 8mm |
| MFR Part No. | E256M10 |
| Product Series | E256 |
| Class of Fit | 6H |
| Cutting Direction | Right |
| Tapping Depth | 39mm |
| Pitch | 1.75mm |
| Shank Diameter | 10mm |
| Tap Type | Spiral Point |
| Overall Length | 100mm |
| Finish/Coating | TiAlN |
| Thread Standard | Metric Coarse |
| Number of Flutes | 3 |
| Thread Length | 20mm |
| Material | HSS-E-PM |
| Unit of Measurement | Metric |
| Thread Direction | Right Hnd |
| Standards | DIN 371 |
| Flute Geometry (FDC) | Spiral\u00a0Point Geometry |
| Thread Form | M - Metric coarse |
| Material Grade | M35 |
| Shank | Cylindrical Shank with Square |
| Product Type | Spiral Point Machine Tap |
| Thread Size | M10 |
| Tap Application | Through Hole |
| Tap Chamfer Style | B 3.5 - 5 |
| Applications | P - Steel and cast steel |
| Application | Steel and Cast Steel |
| Series | E256 |
