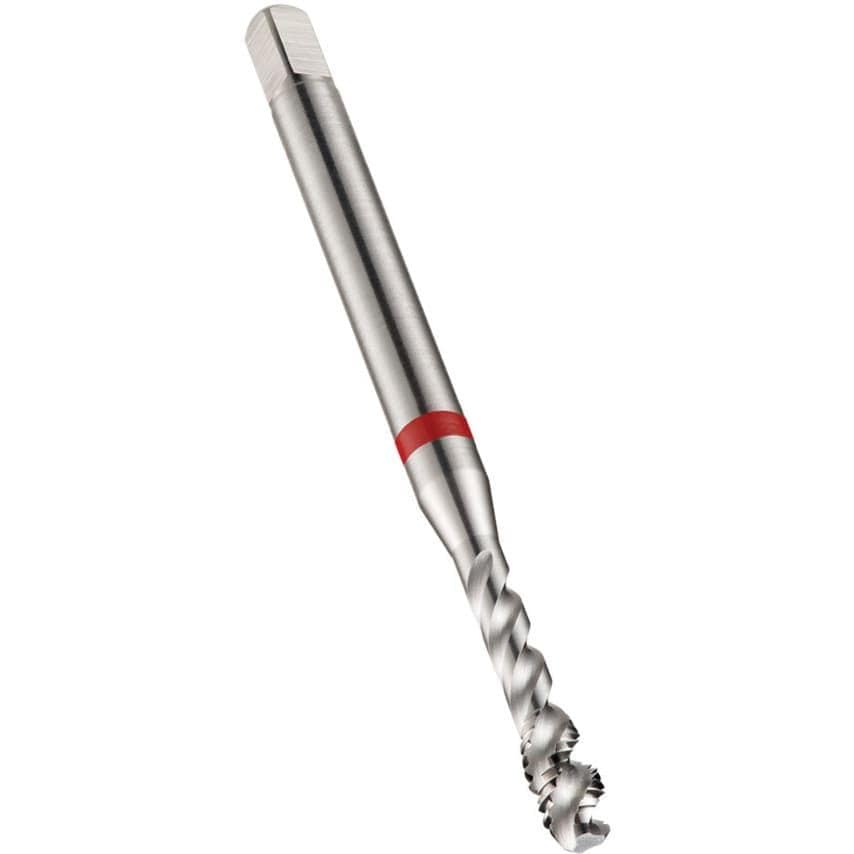

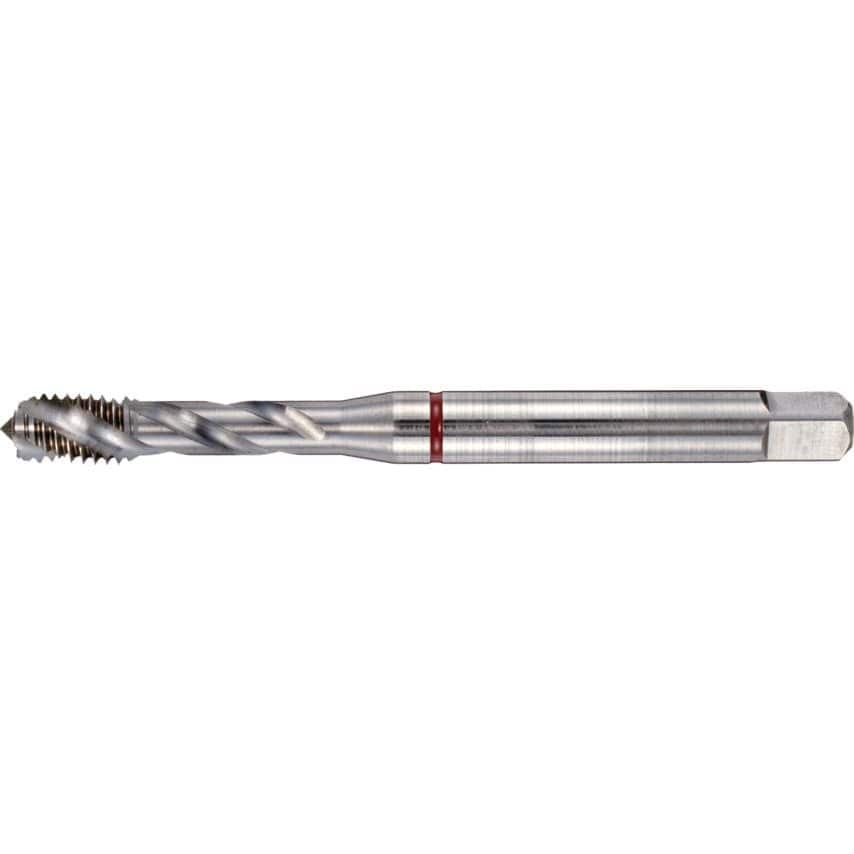

Dormer's application-based range of colour ring coded DIN taps, branded Shark Line, are renowned for their high performance and are an ideal solution when high quality threads are required in specific materials. Extensive research hasled to the development of new features on specific lines, including new coatings and geometries.Red Shark for Alloy SteelsExcellent for Application Good for ApplicationE260 - Bright
| Thread Form | M - Metric coarse |
| Material Grade | M35 |
| Application | Steel and Cast Steel |
| Flute Geometry (FDC) | Spiral Flute Geometry |
| Helix Angle | 45\u00b0 |
| Standards | DIN 376 |
| Class of Fit | 6H |
| Cutting Direction | Right |
| Unit of Measurement | Metric |
| Shank Diameter | 16mm |
| Pitch | 2.5mm |
| Series | E260 |
| Shank | Cylindrical Shank with Square |
| Tap Chamfer Style | C 2 - 3 |
| Number of Flutes | 4 |
| Finish | Bright |
| Thread Size | M20 |
| Lead | C 2-3 |
| MFR Part No. | E260M20 |
| Finish/Coating | Bright |
| Product Type | Machine Taps |
| Material | HSS-E-PM |
| Tap Type | Spiral Flute |
| Square Width | 12mm |
| Product Series | E260 |
| Tap Application | Blind Hole |
| Thread Direction | Right Hnd |
| Applications | P - Steel and cast steel |
| Thread Length | 30mm |
| Dimensions Standard | DIN 376 |
| Thread Standard | Metric Coarse |
| Overall Length | 140mm |
