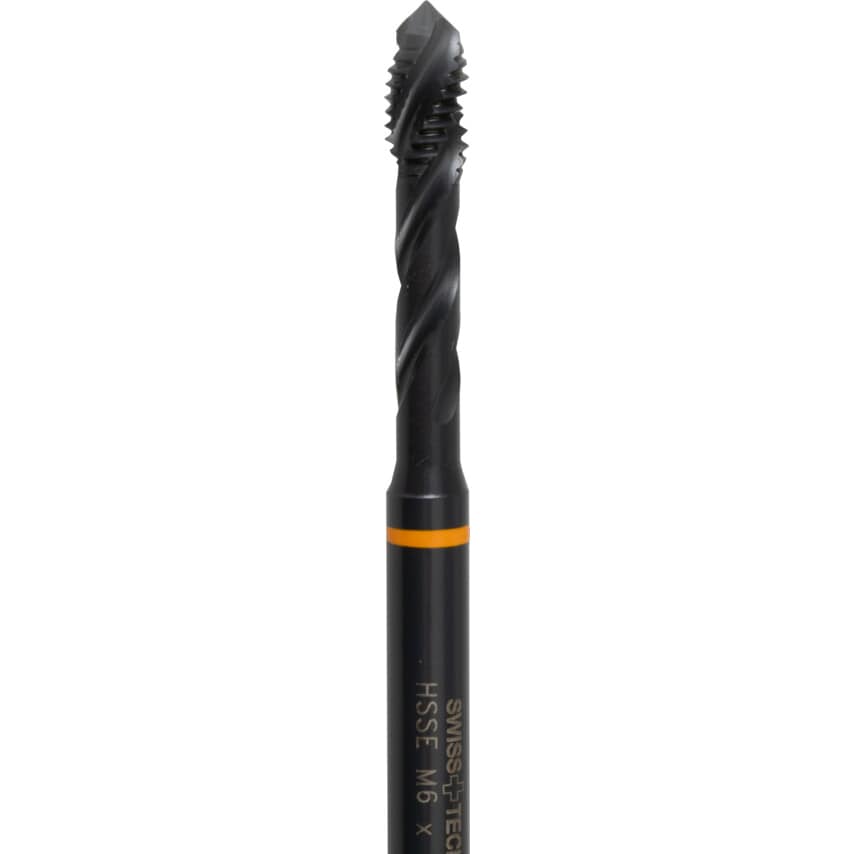

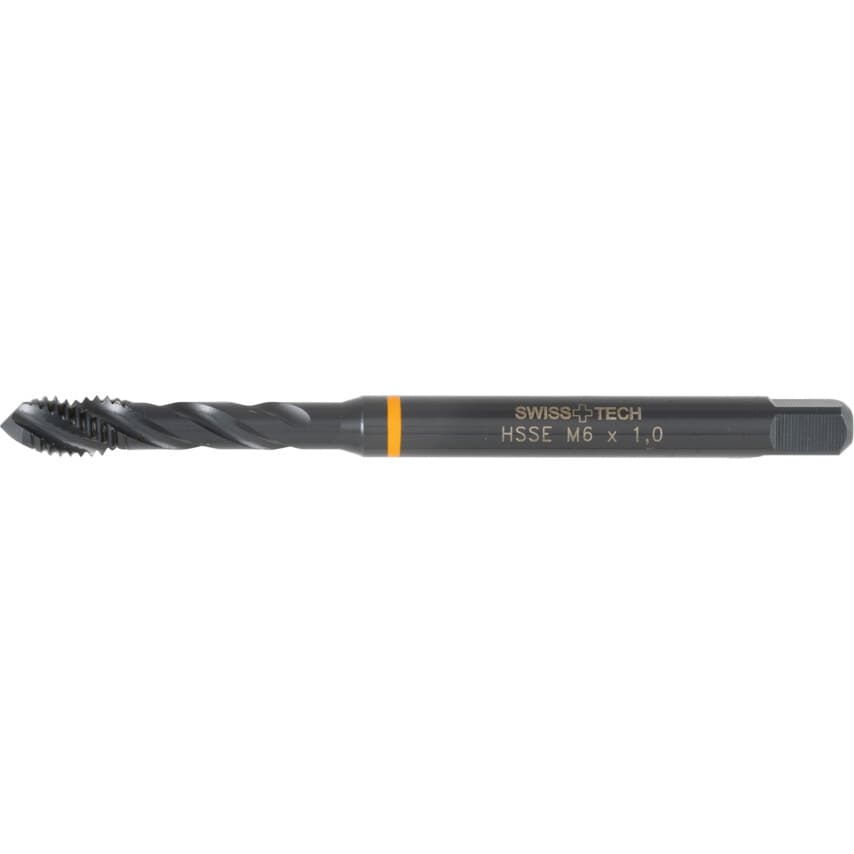

Spiral Flute - ISO Metric Coarse
HSS-PM Nitride & Oxide Finish. For blind holes. Taper lead to DIN form C. This tap has the special chamfer lead of (3 x P). Tapping tolerance: spiral flute to 6H.
ISO Metric Coarse
Helix angle 40. Tapping depth 2.5 x D.
| Thread Direction | Right Hand |
| Shank Diameter | 6.00mm |
| Ring Colour | Orange |
| Product Type | Taps |
| Pitch | 1 |
| Square Width | 4.90mm |
| Number of Flutes | 3 |
| Material Grade | HSS-PM |
| Thread Length | 11.00mm |
| Helix Angle | 40\u00b0 |
| Class of Fit | 6HX |
| Thread Size | M6 |
| Material | Powdered Metal High Speed Steel |
| Overall Length | 80.0mm |
| Finish/Coating | Nitride | Steam Tempered |
| Coolant Delivery | External |
| Material Application | High-Temperature Alloys | Nickel | Titanium Alloys |
| Thread Standard | Metric Coarse |
| Tapping Depth | 15.0mm |
| Dimensions Standard | DIN 371 |
| Tap Type | Straight Flute |
