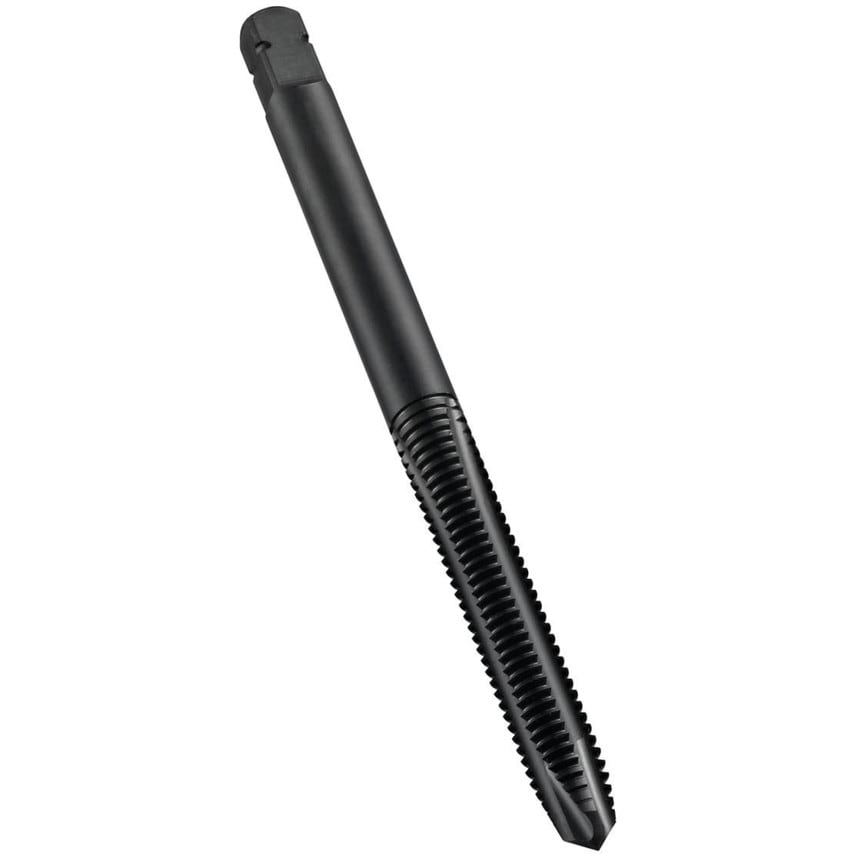

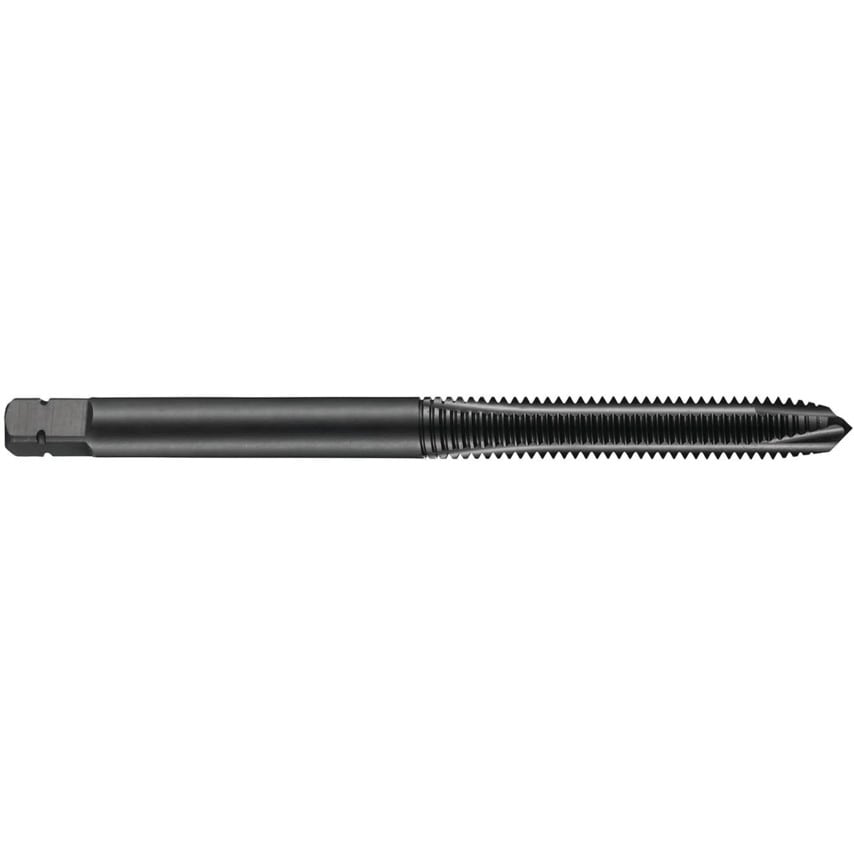

Series E001 HSS-E Spiral Point Taps - Metric
Steam Tempered Metric
Multi-application machine taps offering superb performance in a wide range of materials.
Programme includes DIN and ISO standard taps each with a choice of finishes: Bright, Steam Tempered or Titanium Nitride Coated (TiN).
Wide selection of different thread forms: Metric, Metric Fine, UNC, UNF and (G)BSP.
Available with either spiral point (for through holes) or spiral flute (for blind holes) geometries.
Steam tempered suitable for steel, stainless steel and cast iron.
| Thread Length | 9.5mm |
| Dimensions Standard | ISO 529 |
| Number of Flutes | 2 |
| Material | Cobalt High Speed Steel |
| Thread Standard | Metric Coarse |
| Material Grade | M35 |
| Square Width | 2.24mm |
| Tapping Depth | 9.5mm |
| Product Type | Taps |
| Class of Fit | 6H |
| Series | E001 |
| Shank Diameter | 2.8mm |
| Thread Size | M2.5 |
| Tap Type | Spiral Point |
| Pitch | 0.45 |
| Thread Direction | Right Hand |
| MFR Part No. | E001M2.5 |
| Overall Length | 44.5mm |
| Finish/Coating | Steam Tempered |
