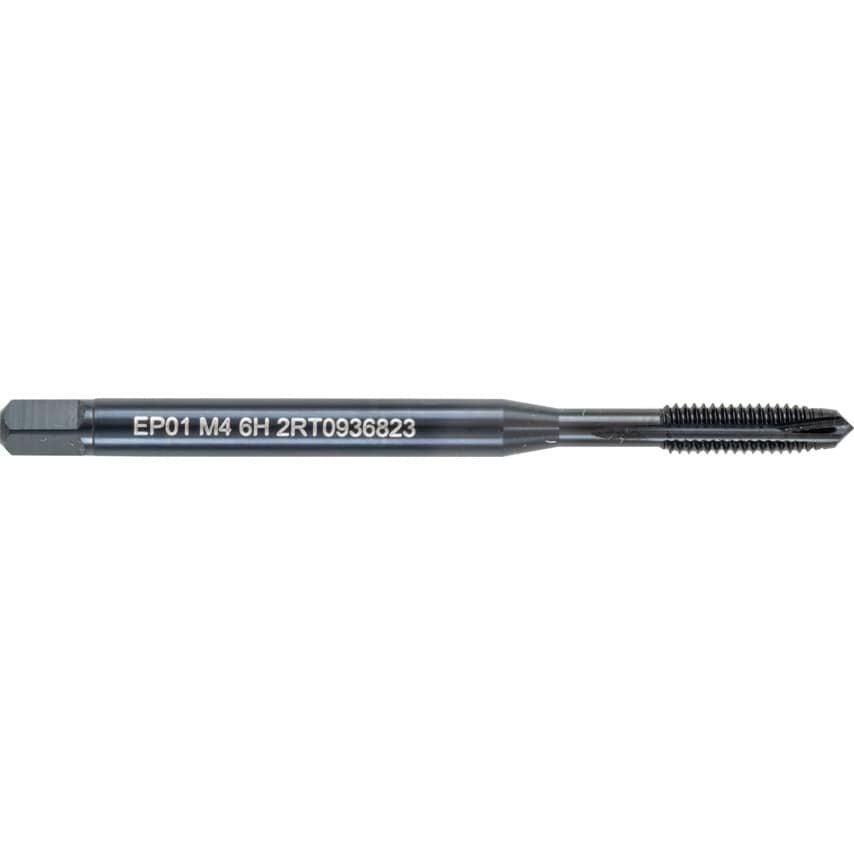

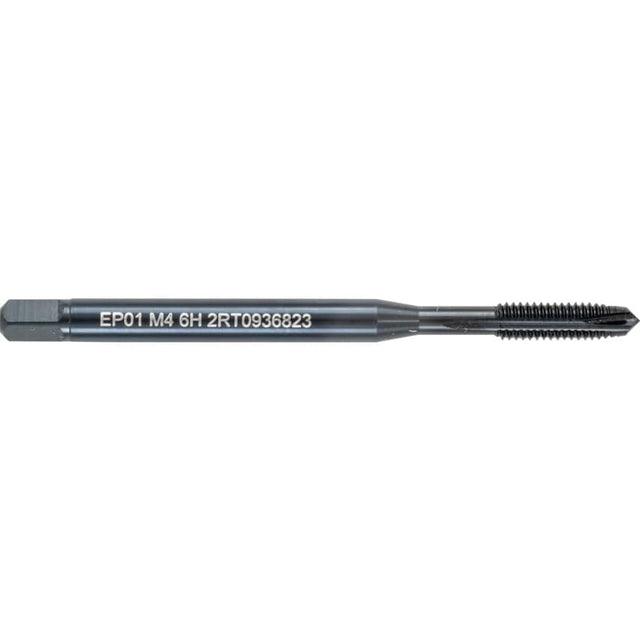

EP01 taps feature a steam tempered HSS with a black oxide coating suitable for use on steel, stainless steel and cast iron. Multi-application machine taps offering superb performance in a wide range of materials. Features and Benefits Spiral point designed for through holes Steam tempered HSS for increased rigidity and tool strength Black oxide coating for improved heat and wear resistanceTypical Applications Steel Stainless steel Cast ironStandards Manufactured to DIN 371 < 10.00mm and DIN 376 > 12.00mm
| Thread Direction | Right Hand |
| Material | Cobalt High Speed Steel |
| Overall Length | 63.0mm |
| Finish/Coating | Steam Tempered |
| Shank Diameter | 4.5mm |
| Product Type | Machine Taps |
| Thread Standard | Metric Coarse |
| Number of Flutes | 3 |
| Square Width | 3.4mm |
| Pitch | 0.70 |
| Tap Type | Spiral Point |
| Thread Size | M4 |
| Dimensions Standard | DIN 371 |
| Tapping Depth | 21.0mm |
| Series | EP016H |
| MFR Part No. | EP01M4 |
| Ring Colour | No Coloured Ring |
| Thread Length | 12.0mm |
| Class of Fit | 6H |
