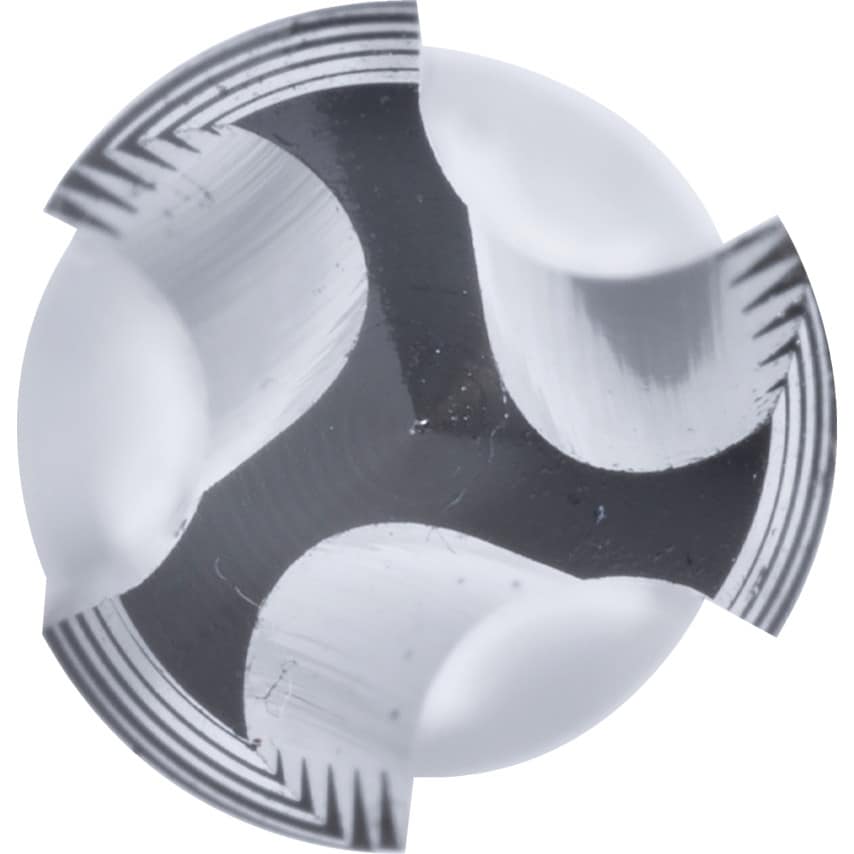

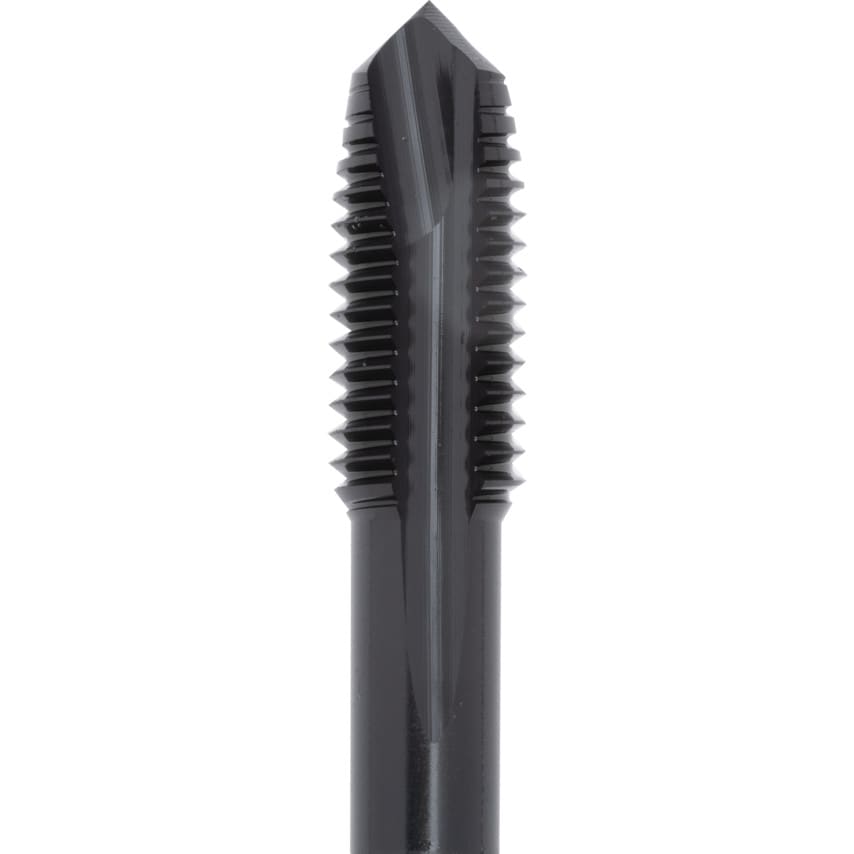

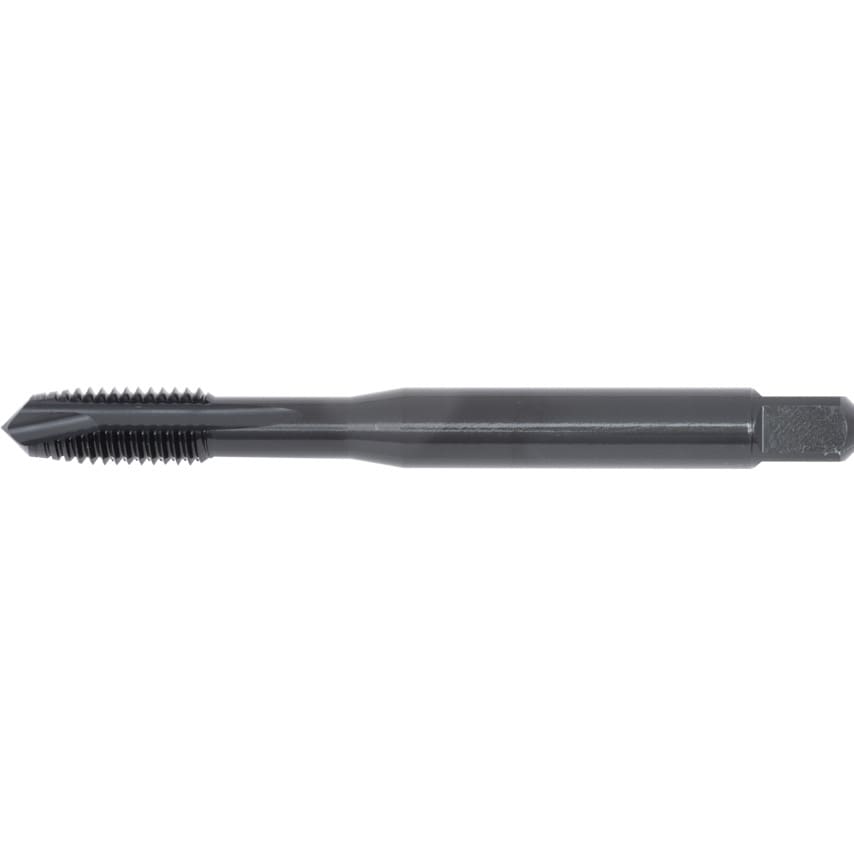

EP01 taps feature a steam tempered HSS with a black oxide coating suitable for use on steel, stainless steel and cast iron. Multi-application machine taps offering superb performance in a wide range of materials. Features and Benefits Spiral point designed for through holes Steam tempered HSS for increased rigidity and tool strength Black oxide coating for improved heat and wear resistanceTypical Applications Steel Stainless steel Cast ironStandards Manufactured to DIN 371 < 10.00mm and DIN 376 > 12.00mm
| Thread Direction | Right Hand |
| Dimensions Standard | DIN 371 |
| Ring Colour | No Coloured Ring |
| Thread Size | M10 |
| Overall Length | 100.0mm |
| Thread Length | 20.0mm |
| Thread Standard | Metric Coarse |
| Material | Cobalt High Speed Steel |
| MFR Part No. | EP01M10 |
| Finish/Coating | Steam Tempered |
| Product Type | Machine Taps |
| Shank Diameter | 10.0mm |
| Tap Type | Spiral Point |
| Series | EP016H |
| Number of Flutes | 3 |
| Class of Fit | 6H |
| Square Width | 8.0mm |
| Pitch | 1.50 |
| Tapping Depth | 39.0mm |
