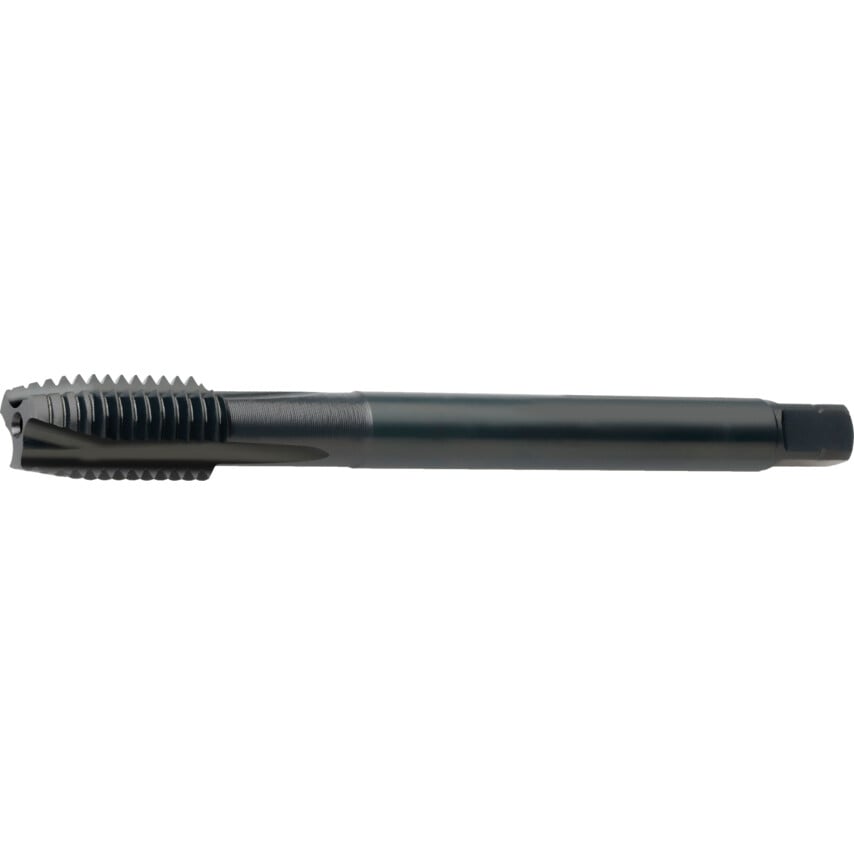

EP01 taps feature a steam tempered HSS with a black oxide coating suitable for use on steel, stainless steel and cast iron. Multi-application machine taps offering superb performance in a wide range of materials. Features and Benefits Spiral point designed for through holes Steam tempered HSS for increased rigidity and tool strength Black oxide coating for improved heat and wear resistanceTypical Applications Steel Stainless steel Cast ironStandards Manufactured to DIN 371 < 10.00mm and DIN 376 > 12.00mm
| Thread Direction | Right Hand |
| Finish/Coating | Steam Tempered |
| Material | Cobalt High Speed Steel |
| Square Width | 2.7mm |
| Tapping Depth | 18.0mm |
| Dimensions Standard | DIN 371 |
| Series | EP016H |
| Tap Type | Spiral Point |
| Overall Length | 56.0mm |
| Thread Length | 9.0mm |
| Thread Standard | Metric Coarse |
| Class of Fit | 6H |
| Number of Flutes | 3 |
| MFR Part No. | EP01M3 |
| Product Type | Machine Taps |
| Shank Diameter | 3.5mm |
| Pitch | 0.50 |
| Thread Size | M3 |
| Ring Colour | No Coloured Ring |
