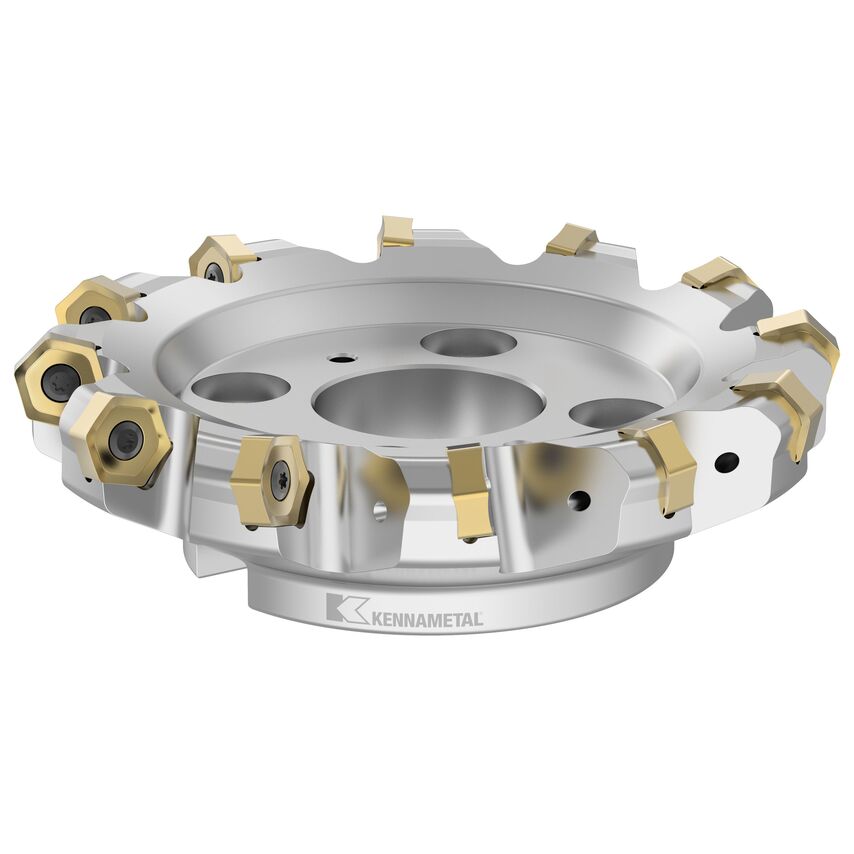

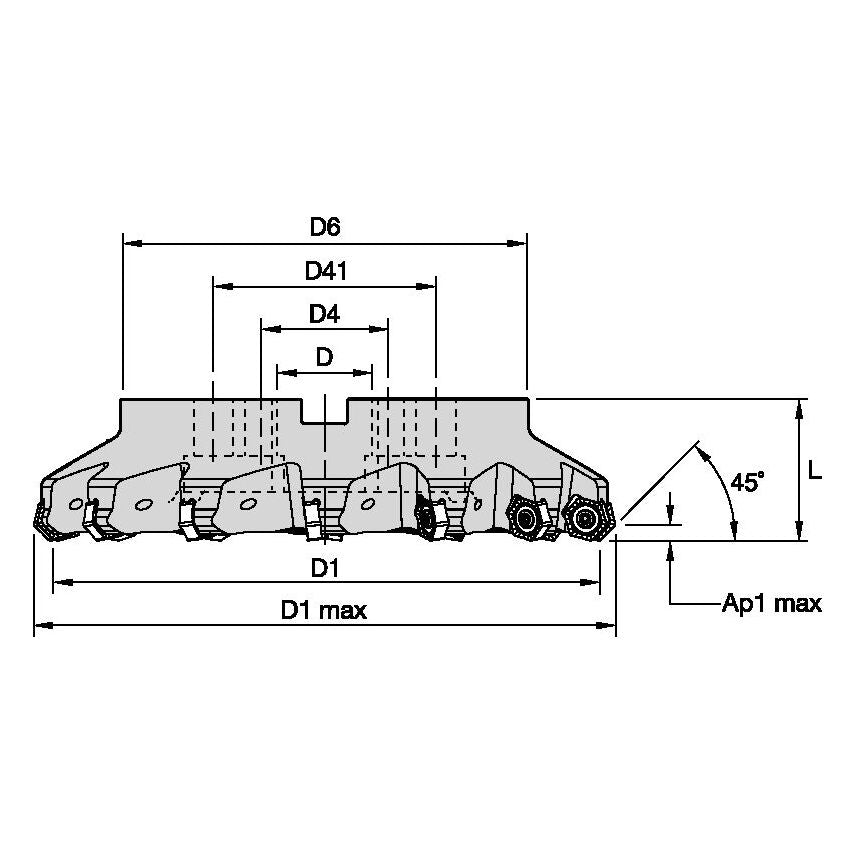

Shell MillsDodeka MAX 45
| Coolant Supplied | Yes |
| Max. Depth of Cut | 8.0000mm |
| Hub Diameter | 110mm | 110.0000mm |
| Insert Shape | H-Hexagon 120 |
| Number of Inserts | 9 |
| MFR Part No. | 4059485 |
| Maximum Cutting Diameter | 177.323mm |
| Adapter Type Machine Side | Shell Mill |
| Milling Application | Face Mill |
| Clamp Type | Screw Clamping |
| Body Material | Steel |
| Center Cutting Tool | No Center Cutting |
| Unit Measured | Metric |
| Number of Flutes | 9 |
| Body Diameter Max | 172mm |
| Hand Preference | Right |
