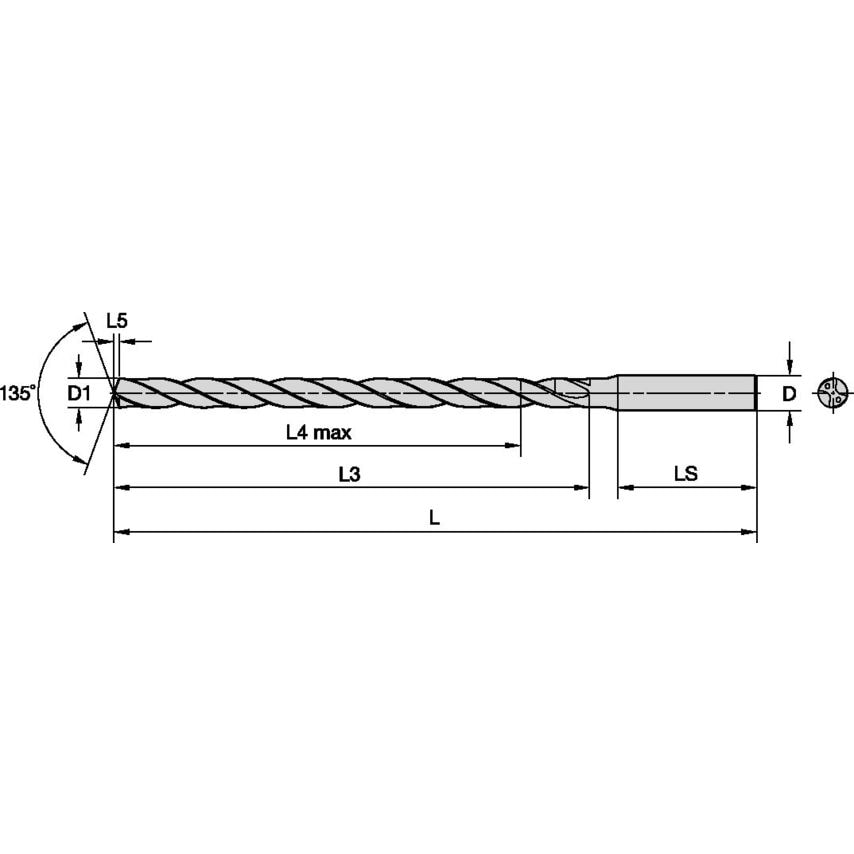

HP Beyond Four-Margin, Long-Length Drills Through Coolant 12 x D
High-Performance Solid Carbide Drills
| Flute Construction | Helical Flute |
| Overall Length | 153mm | 153.0000mm |
| Drill Diameter | 7.7000mm |
| MFR Part No. | 4169271 |
| Material | Carbide |
| Drill Point | 1.44mm |
| Assembly Length | 115.56mm |
| Adapter Type | Cylindrical |
| Drill Diameter Tolerance | 0.006000 to 0.021000mm |
| Shank Length | 36.0000mm |
| Hand Preference | Right |
| Adapter / Shank / Bore Diameter | 8.0000mm |
| Helix Angle | 29.361 |
| Adapter Style | Straight-Cylindrical |
| Functional Length | 151.5600mm |
| Clamping Length | 36mm |
| Finish/Coating | TiAlN |
| Helix Type | Right Hand Helix/Flute |
| Unit Measured | Metric |
| Drill Depth | 96mm | 96.0000mm |
| Coolant Supplied | Yes |
| Number of Flutes | 2 |
| Primary Material | Steel |
| Flute Length | 113mm | 113.0000mm |
