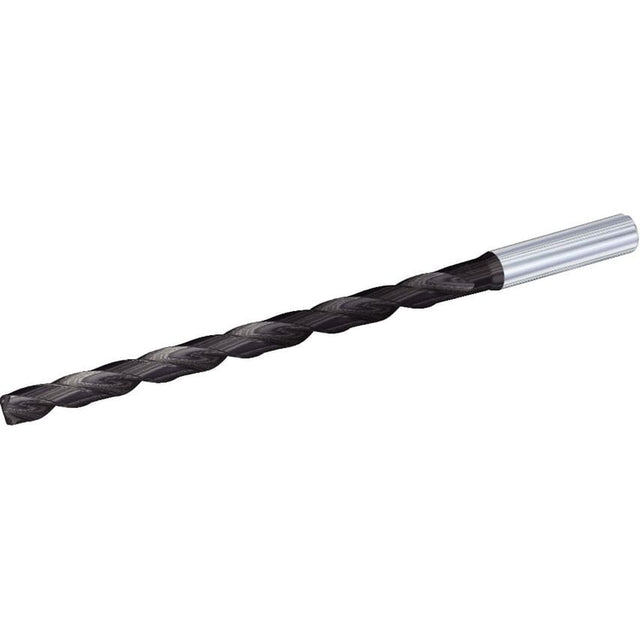

HP Beyond Four-Margin, Long-Length Drills Through Coolant 12 x D
High-Performance Solid Carbide Drills
| Unit Measured | Metric |
| Finish/Coating | TiAlN |
| Adapter / Shank / Bore Diameter | 12.0000mm |
| Adapter Style | Straight-Cylindrical |
| MFR Part No. | 4169293 |
| Clamping Length | 45mm |
| Adapter Type | Cylindrical |
| Functional Length | 215.9500mm |
| Helix Angle | 27.998 |
| Overall Length | 218mm | 218.0000mm |
| Drill Diameter Tolerance | 0.007000 to 0.025000mm |
| Shank Length | 45.0000mm |
| Drill Diameter | 11.0000mm |
| Drill Depth | 142mm | 142.0000mm |
| Coolant Supplied | Yes |
| Coolant Diameter | 1.7600mm (0.0441in) |
| Flute Construction | Helical Flute |
| Number of Flutes | 2 |
| Flute Length | 167mm | 167.0000mm |
| Assembly Length | 173.95mm |
| Drill Point | 2.05mm |
| Helix Type | Right Hand Helix/Flute |
| Material | Carbide |
| Hand Preference | Right |
| Primary Material | Steel |
