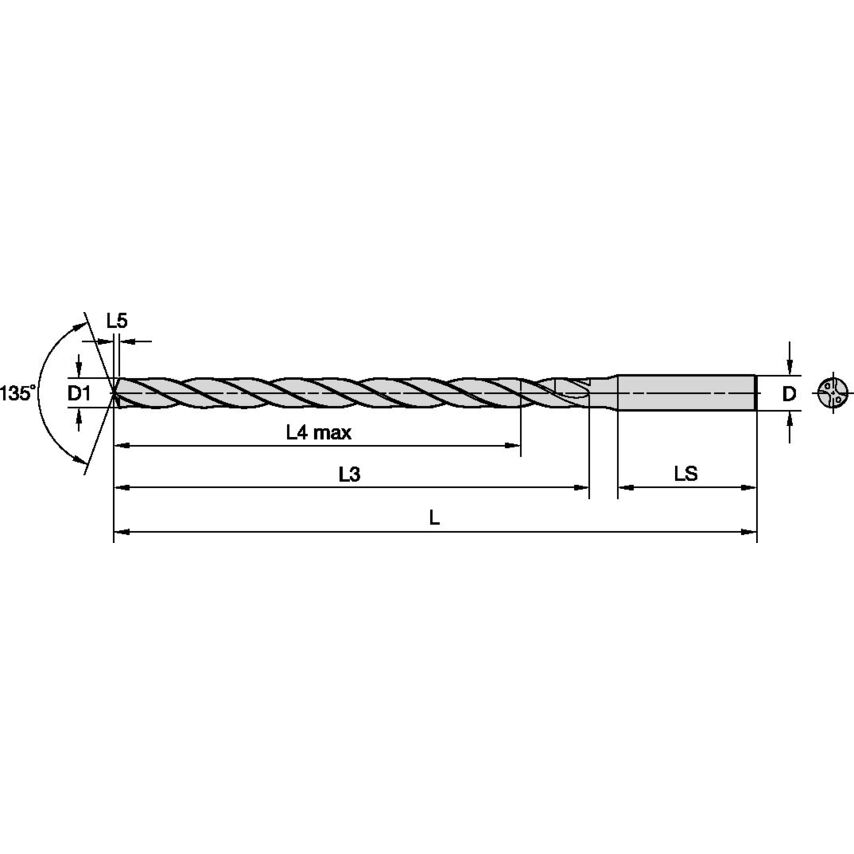

HP Beyond Four-Margin, Long-Length Drills Through Coolant 12 x D
High-Performance Solid Carbide Drills
| Unit Measured | Metric |
| Drill Point | 2.254mm |
| Adapter Style | Straight-Cylindrical |
| Hand Preference | Right |
| Shank Length | 45.0000mm |
| Number of Flutes | 2 |
| Assembly Length | 198.746mm |
| Coolant Supplied | Yes |
| Finish/Coating | TiAlN |
| MFR Part No. | 4169298 |
| Primary Material | Steel |
| Drill Diameter Tolerance | 0.007000 to 0.025000mm |
| Flute Construction | Helical Flute |
| Helix Angle | 25.896 |
| Flute Length | 192mm | 192.0000mm |
| Clamping Length | 45mm |
| Adapter Type | Cylindrical |
| Overall Length | 246mm | 246.0000mm |
| Drill Depth | 164mm | 164.0000mm |
| Drill Diameter | 12.1000mm |
| Helix Type | Right Hand Helix/Flute |
| Functional Length | 243.7460mm |
| Adapter / Shank / Bore Diameter | 14.0000mm |
| Material | Carbide |
